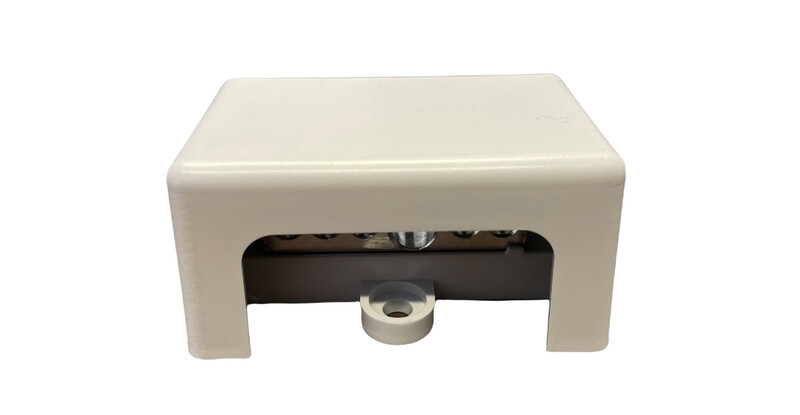

POTENTIAL-EQUALIZING BUSBAR 1X6-25MM2 + 5X1,5-6MM2
Product code
1902500
Small two-row potential equalization bar with protective cover. Connections: 1 piece for 6-25 mm² wires + 5 pieces for 1.5-6 mm² wires. Potential equalization bars are used to connect/assemble potential equalization conductors of electrical equipment. The protective housing is made of halogen-free gray polypropylene. Dimensions: 64x40x31 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Equipotential bonding bar (EC001470)
Construction typeSurface mounting fix
ModelWith covering cap
Insulatoryes
Height31 mm
Width64 mm
Length40 mm
Number of connections conductor to 6 mm² fixed5
Number of connections conductor to 25 mm² fixed1
Product codes
SAPDJD419
STK1902500
PLC1902500
GTIN/EAN6430078840835
Manufacturer part numberPTK PIENI
Vendor material number1902500
Basic information
Package measurements (L x W x H)40 x 64 x 31 mm
Package volume0.079 l
Package weight0.053 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121117
BrandLAATUANTENNI
VendorLAATUANTENNI OY
