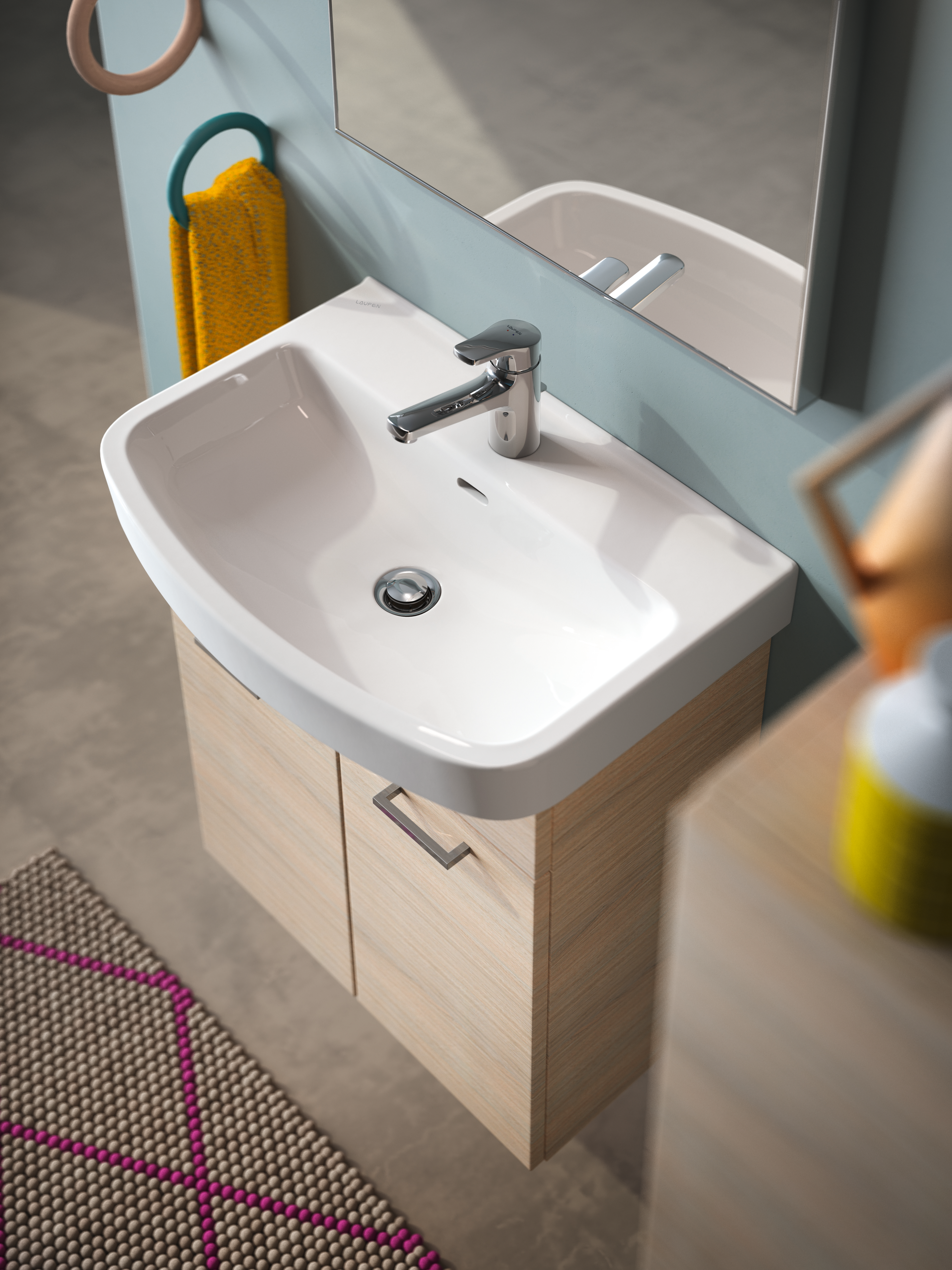

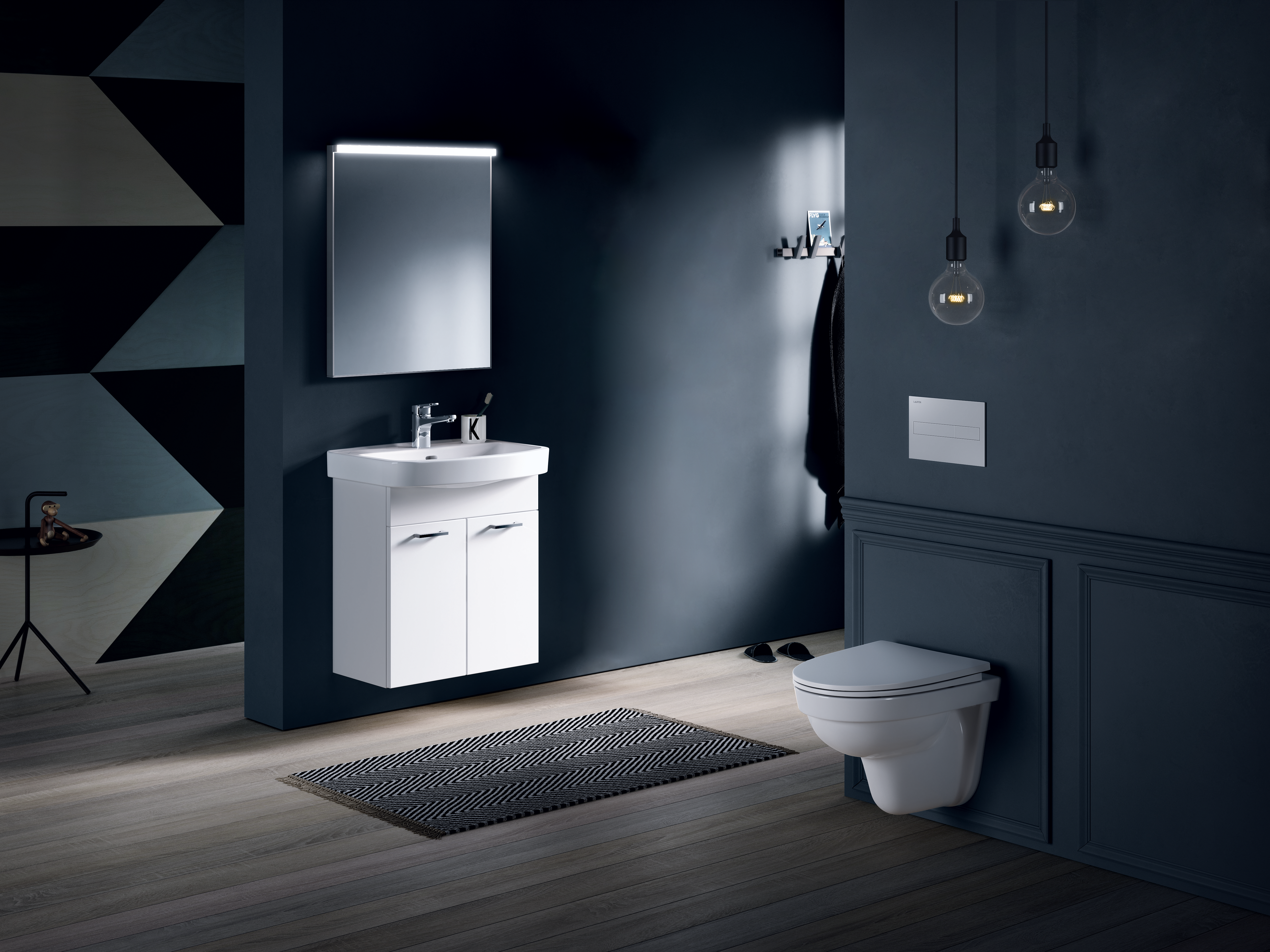

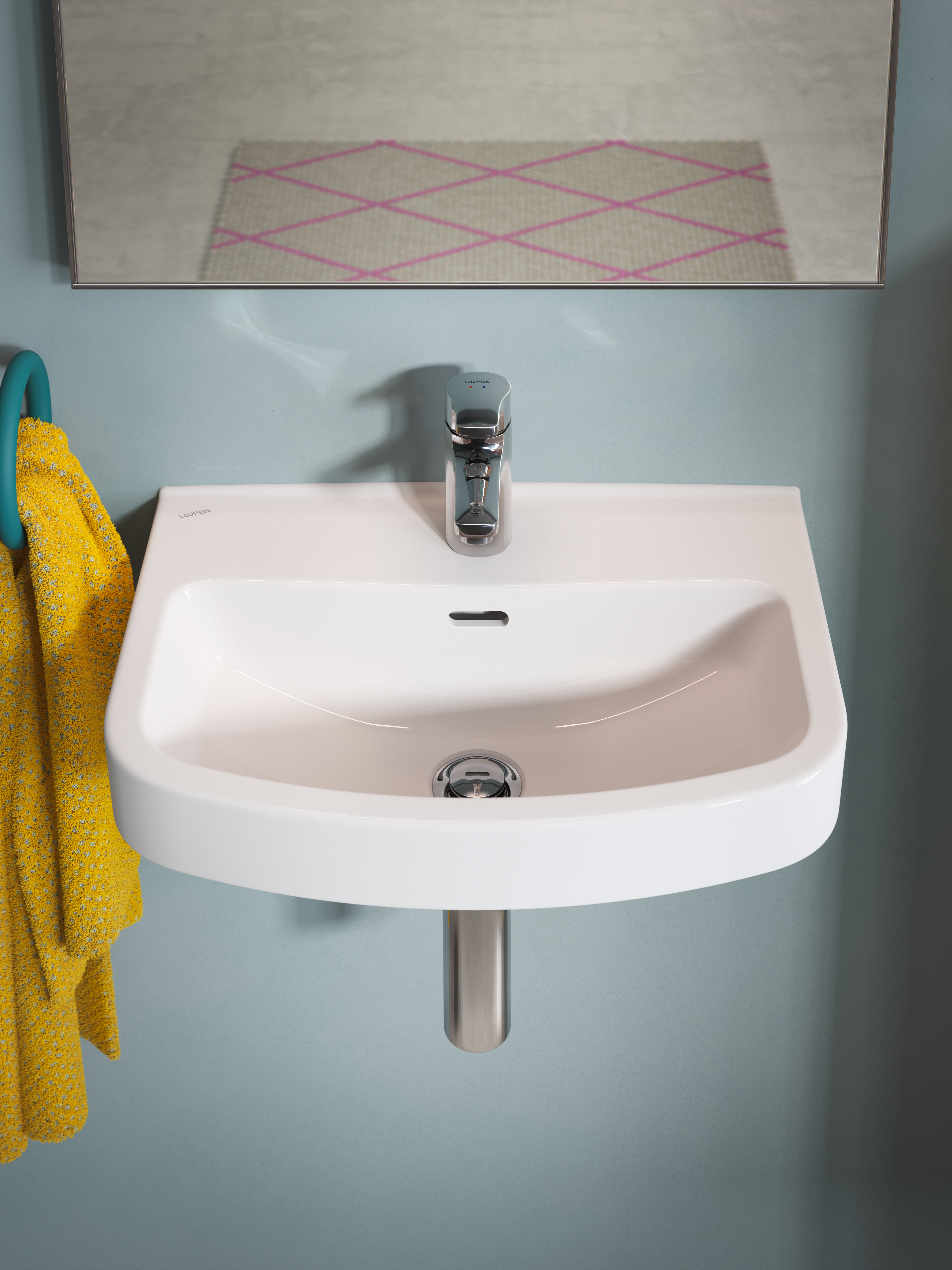

WASHBASIN LAUFEN KOMPAS 560
Product code
5618003
The Laufen Kompas series white sink is a spacious, angularly shaped basin that is easy to clean. The faucet hole is centered, and the basin features a fully glazed overflow. The basin is made of white sanitary porcelain (EN 31).
Technical specifications:- dimensions (L x W x H) 560 x 150 x 420 mm
- internal basin dimensions 500 x 270 mm
- mounting with bracket or screw fixation
- overflow opening
Product details
Technical specifications
Product class (ETIM)Washbasin (EC011550)
MaterialCeramics
Material qualityOther
ShapeOther
ColourWhite
Type of fasteningConsole and plug bolt
Centre distance bolt holes280 - 280 mm
With mounting materialno
Suitable for cabinetyes
Support plateauBack side
Number of usage locations1
Number of washbasins1
Medical modelno
Dirt-resistantno
Anti-bacterial treatmentno
Tap holeCentre
Product codes
SAPCFN910
HPAC5618003
PLC5618003
GTIN/EAN7612738339470
Manufacturer part numberH8101510001041
Vendor material numberH8101510001041
Basic information
Package measurements (L x W x H)620 x 190 x 450 mm
Package volume53.01 l
Package weight11.5 kg
Base uniteach
Package units1 / 24
Package contents–
UNSPSC30181504
BrandLAUFEN
VendorLAUFEN NORDIC A/S
Documents (17)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)50.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000457
