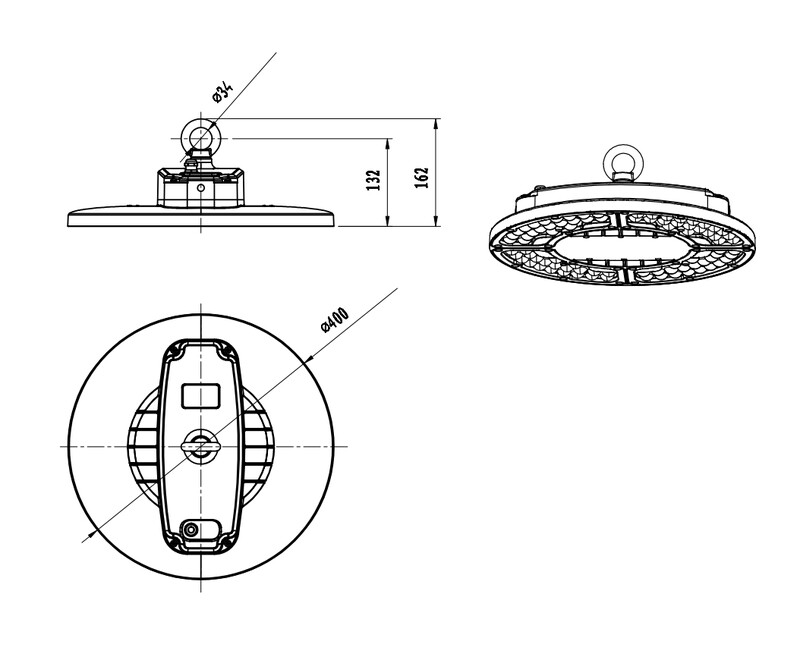

HIGH-BAY LUMINAIRE MAX LUMEN IP65 200W 400MM 850 80DEG DIM
Product code
4325601
Max Lumen UGR19 is a high-performance deep-diffusing luminaire designed for energy-efficient and comfortable lighting in high spaces. Advanced lens optics enable a low glare value of UGR19.
- Power options: 100, 150, and 200W
- Luminous flux: 17000lm - 34000lm
- Light distribution with 80-degree lens
- Color temperature: 4000K or 5000K; Optional programmable plug-in motion sensor
- Impact resistance: IK09; Service life: 100,000h L80/B10 at 25°C
- 5-year warranty
Product details
Technical specifications
Product class (ETIM)High bay luminaire (EC001716)
Lamp typeLED not exchangeable
With light sourceno
Suitable for auxiliary lampno
Lamp holderNone
Housing materialAluminium
Housing colourGrey
Voltage typeAC
Nominal voltage230-230 V
Type of control gearLED operating device current-controlled
Exchangeable control gearyes
With control gearno
With movement sensorno
Dimmableyes
Dimming 0-10 Vyes
Dimming 1-10 Vyes
Product codes
SAPCPS335
STK4325601
PLC4325601
GTIN/EAN6430077514225
Manufacturer part number4325601
Vendor material number4325601
Basic information
Package measurements (L x W x H)460 x 460 x 220 mm
Package volume46.552 l
Package weight6.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandLEDIMO
VendorLEDIMO OY
