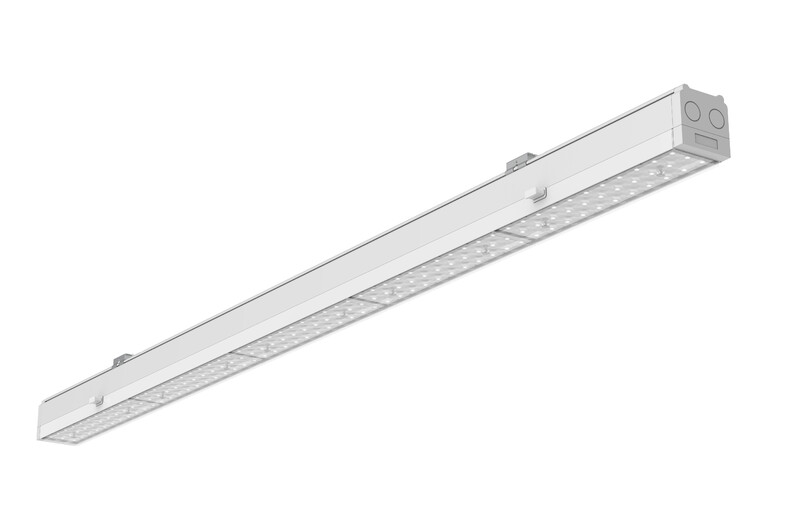

SURFACE MNT./SUSPEN. LUMINAIRE LINEAR 120W 2012MM 840 60D W
Product code
4152203
Linear IP20 is designed for efficient general lighting. A wide range of lenses enables optimal lighting tailored to the application. The light fixture's base, as a separate module, allows for easy and quick installation and wiring.
• Power selection (32-60W) via DIP switches.
• Beam distribution via lens: 60° or 90°
• DALI control with Tunable White (TW) option
• Color temperature: 4000K
• Impact resistance: IK05
• Service life: 100,000 hours L70/B50 at 25°C
• Warranty: 5 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationyes
Suitable for clamp-mountingyes
With mounting materialyes
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceno
Housing materialAluminium
Surface protection housingPowder coating
Housing colourWhite
Material coverPlastic, transparent
Product codes
SAPDKZ027
STK4152203
PLC4152203
GTIN/EAN6430077519695
Manufacturer part number4152203
Vendor material number4152203
Basic information
Package measurements (L x W x H)2050 x 70 x 75 mm
Package volume10.762 l
Package weight3 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39111544
BrandLEDIMO
VendorLEDIMO OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)39.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
