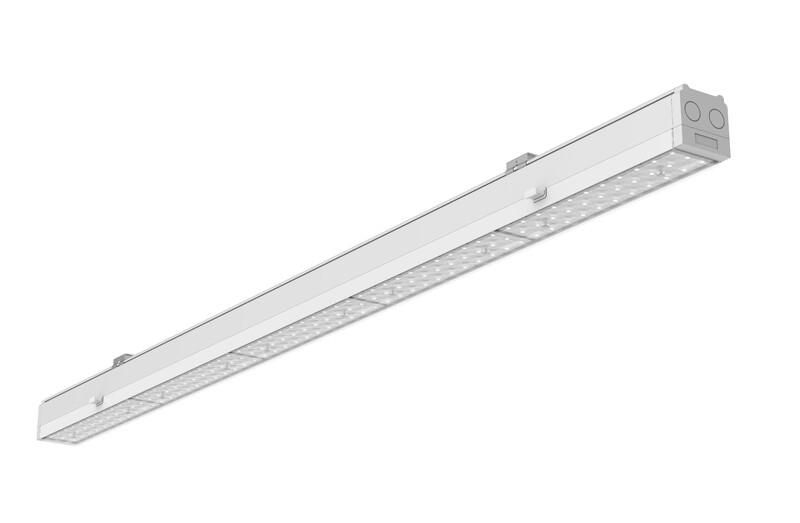

SURFACE MNT./SUSPEN. LUMINAIRE LINEAR 129W 2012MM 4K 60D DA W
Product code
4152312
Linear IP20 is designed for efficient general lighting. A wide range of lenses enables optimal lighting tailored to the application. The light fixture's base, as a separate module, allows for easy and quick installation and wiring.
• Power selection (32-60W) via DIP switches.

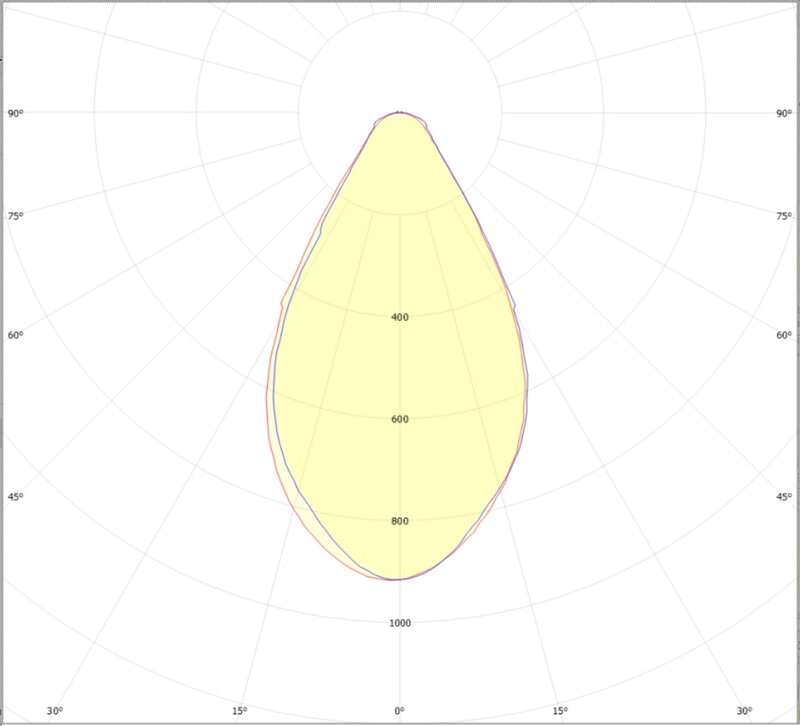

• Beam distribution via lens: 60° or 90°
• DALI control with Tunable White (TW) option
• Color temperature: 4000K
• Impact resistance: IK05
• Service life: 100,000 hours L70/B50 at 25°C
• Warranty: 5 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationyes
Suitable for clamp-mountingyes
With mounting materialyes
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceno
Housing materialAluminium
Surface protection housingPowder coating
Housing colourWhite
Material coverPlastic, transparent
Product codes
SAPDKZ023
STK4152312
PLC4152312
GTIN/EAN6430081635169
Manufacturer part number4152312
Vendor material number4152312
Basic information
Package measurements (L x W x H)2050 x 70 x 75 mm
Package volume10.762 l
Package weight3 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39111544
BrandLEDIMO
VendorLEDIMO OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)39.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
