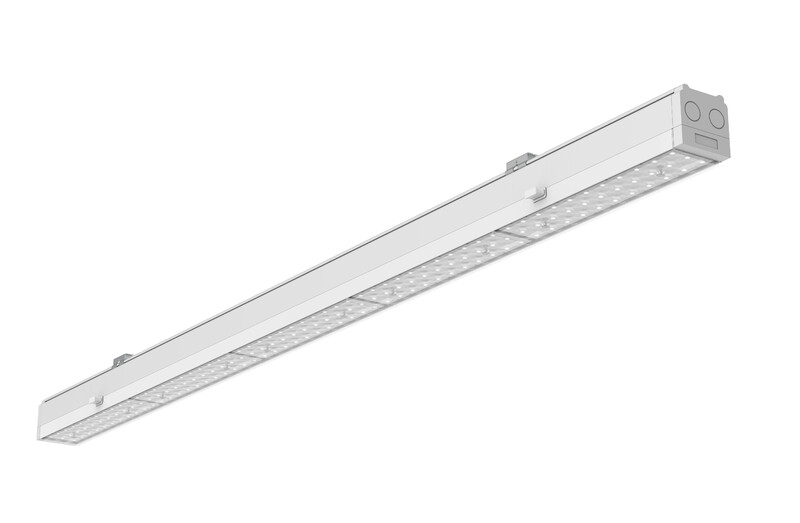

SURFACE MNT./SUSPEN. LUMINAIRE LINEAR 60W 1462MM TW 90D DA B

Product code
4152345
Linear IP20 is designed for efficient general lighting. A wide range of lenses enables optimal lighting tailored to the application. The light fixture's base, as a separate module, allows for easy and quick installation and wiring. • Power selection (32-60W) via DIP switches. • Beam distribution via lens: 60° or 90° • DALI control with Tunable White (TW) option • Color temperature: 4000K • Impact resistance: IK05 • Service life: 100,000 hours L70/B50 at 25°C • Warranty: 5 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationyes
Suitable for clamp-mountingyes
With mounting materialyes
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceno
Housing materialAluminium
Surface protection housingPowder coating
Housing colourBlack
Material coverPlastic, transparent

Product codes

SAPDKZ017
STK4152345
PLC4152345
GTIN/EAN6430081635992
Manufacturer part number4152345
Vendor material number4152345

Basic information

Package measurements (L x W x H)1550 x 70 x 75 mm
Package volume8.138 l
Package weight2.5 kg
Base uniteach
Package units1 / 8
Package contents
UNSPSC39111544
BrandLEDIMO
VendorLEDIMO OY

Documents (3)

Brochures & documents

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)32.5
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
