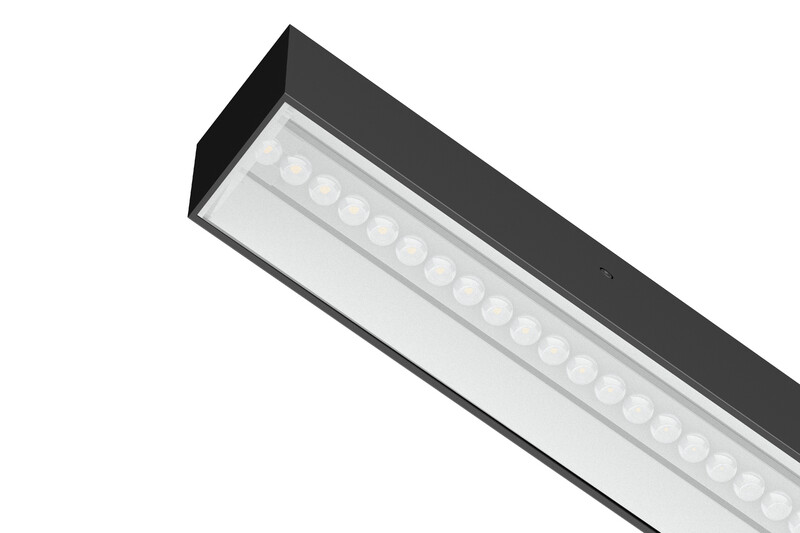

SURFACE MNT./SUSPEN. LUMINAIRE OFFICE LINEAR IP40 28W 3K W DA
Product code
4119949
Office Linear IP40 is a versatile general lighting fixture for offices and other indoor spaces. The luminaire's advanced design enables easy and fast installation in multiple ways.
• Installation directly onto the ceiling surface or suspended with a cable suspension (standard).
• Light direction is direct or direct/indirect (up/down).
• Luminaire models available with ON/OFF or DALI control.
• Color temperature 4000K.

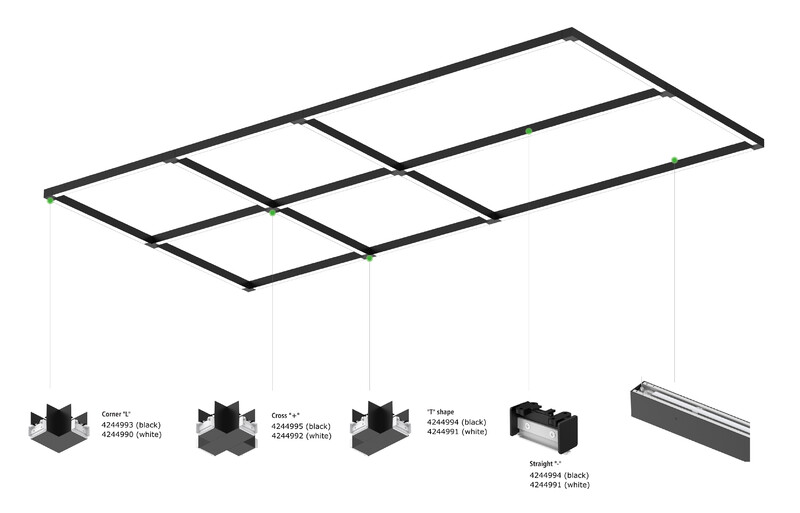

• Linear installation direct (standard), T-, L-, and X connections available as optional accessories.
• Housing colors: black and white.
• Impact resistance IK06.
• 60,000 L70/B50 at 25°C.
• Warranty 5 years. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pendant luminaire (EC001743)
Suitable for light line configurationyes
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceno
Lamp holderNone
Housing materialAluminium
Housing colourWhite
Material coverPlastic, structured
Type of gridNone
Voltage typeAC
Nominal voltage230-230 V
Type of control gearLED operating device current-controlled
With control gearno
Exchangeable control gearyes
Dimming 0-10 Vno
Product codes
SAPDKZ040
STK4119949
PLC4119949
GTIN/EAN6430081630560
Manufacturer part number4119949
Vendor material number4119949
Basic information
Package measurements (L x W x H)1280 x 75 x 85 mm
Package volume8.16 l
Package weight3.65 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39111544
BrandLEDIMO
VendorLEDIMO OY
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)47.45
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
