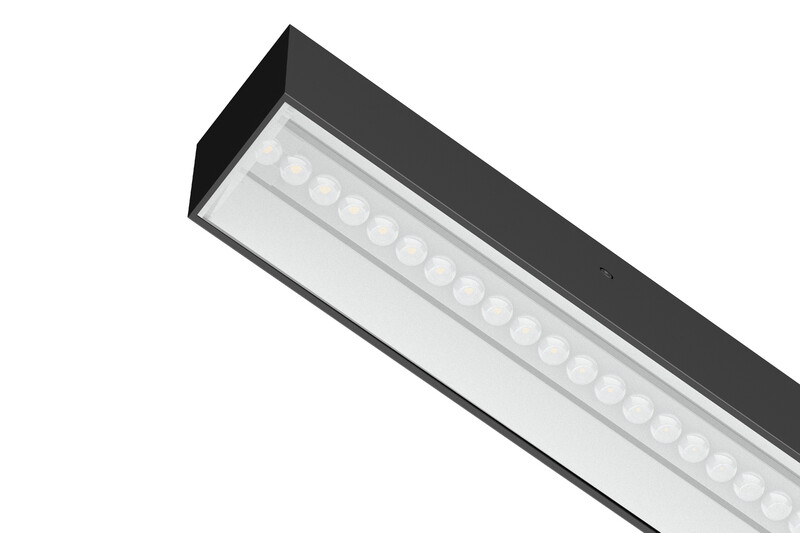

SURFACE MNT./SUSPEN. LUMINAIRE OFFICE LINEAR IP40 35W 4K B DA

Product code
4119945

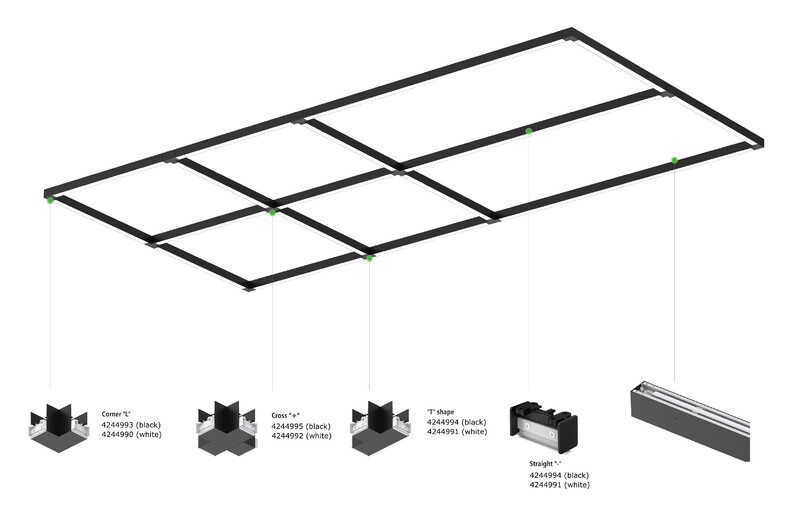

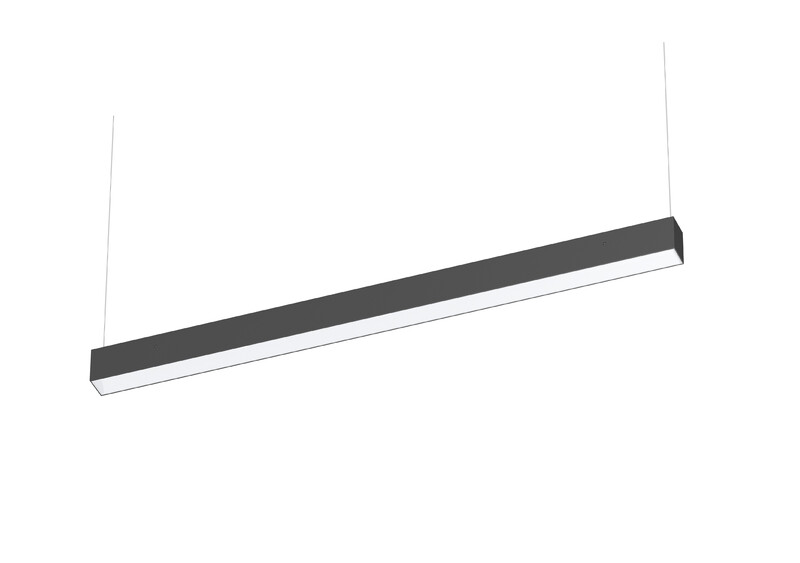

Office Linear IP40 is a versatile general lighting fixture for offices and other indoor spaces. The luminaire's advanced design enables easy and fast installation in multiple ways. • Installation directly onto the ceiling surface or suspended with a cable suspension (standard). • Light direction is direct or direct/indirect (up/down). • Luminaire models available with ON/OFF or DALI control. • Color temperature 4000K. • Linear installation direct (standard), T-, L-, and X connections available as optional accessories. • Housing colors: black and white. • Impact resistance IK06. • 60,000 L70/B50 at 25°C. • Warranty 5 years. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Pendant luminaire (EC001743)
Suitable for light line configurationyes
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceno
Lamp holderNone
Housing materialAluminium
Housing colourBlack
Material coverPlastic, structured
Type of gridNone
Voltage typeAC
Nominal voltage230-230 V
Type of control gearLED operating device current-controlled
With control gearno
Exchangeable control gearyes
Dimming 0-10 Vno

Product codes

SAPDKZ036
STK4119945
PLC4119945
GTIN/EAN6430081630522
Manufacturer part number4119945
Vendor material number4119945

Basic information

Package measurements (L x W x H)1580 x 75 x 85 mm
Package volume10.072 l
Package weight3.65 kg
Base uniteach
Package units1 / 6
Package contents
UNSPSC39111544
BrandLEDIMO
VendorLEDIMO OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)47.45
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
