CEILING LUMINAIRE MODULED MDL2002 IP65 38000LM 296W PCDA

Product code
4322476

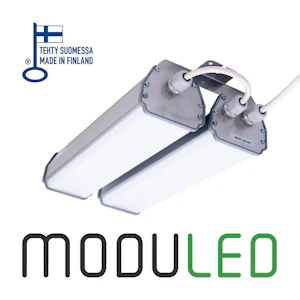

Modular IP65-rated, DALI-dimmable luminaire designed for industrial and agricultural applications. Aluminum-bodied, designed in Finland and manufactured in Kempele from high-quality components for demanding use. The luminaire is equipped with a fixed cable connection. Mounting and wiring are performed from outside the luminaire without opening it, ensuring quick installation. Direct ceiling mounting. Optional mounting brackets for rail, cable, and wall mounting. The luminaire meets the ball impact test requirements of VDE 0710 Part 13 and is suitable for sports facility lighting.

  • Operating temperature: -25°C … +50°C
  • Impact resistance: IK10
  • Protection class: IP65
  • Material: housing aluminum, end caps RST, lens PC
  • Color temperature: 4000K (Optional: 3000K, 5000K, and 6500K)
  • Color rendering: Ra > 80, SDCM 3
  • Lifespan: L90F10 > 100000 h
  • Warranty: 5 years, STUL 3 years
  • Connection: Fixed installation cable, optional connector
  • Optional mounts: Adjustable mounts, rail and cable mounts
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

No technical specifications available

Product codes

SAPDAB164
STK4322476
PLC4322476
Manufacturer part numberMDL2002 DALI
Vendor material numberMDL2002 DALI

Basic information

Package measurements (L x W x H)1700 x 120 x 100 mm
Package volume20.4 l
Package weight10.5 kg
Base uniteach
Package units1
Package contents
UNSPSC39111541
BrandLEDISTYS
VendorLEDISTYS OY
The country of origin stated by the supplierFinland
