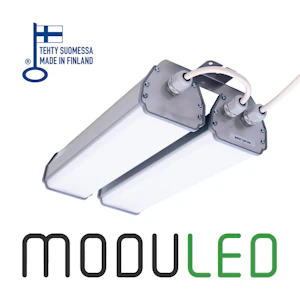

CEILING LUMINAIRE MODULED MDL802 IP65 17400LM 146WPC DA
Product code
4322470
Modular IP65-rated, DALI-dimmable luminaire designed for industrial and agricultural applications. Aluminum-bodied, designed in Finland and manufactured in Kempele from high-quality components for demanding use. The luminaire is equipped with a fixed cable connection. Mounting and wiring are performed from outside the luminaire without opening it, ensuring quick installation. Direct ceiling mounting. Optional mounting brackets for rail, cable, and wall mounting. The luminaire meets the ball impact test requirements of VDE 0710 Part 13 and is suitable for sports facility lighting.
- Operating temperature: -25°C … +50°C
- Impact resistance: IK10
- Protection class: IP65
- Material: housing aluminum, end caps RST, lens PC
- Color temperature: 4000K (Optional: 3000K, 5000K, and 6500K)
- Color rendering: Ra > 80, SDCM 3
- Lifespan: L90F10 > 100000 h
- Warranty: 5 years, STUL 3 years
- Connection: Fixed installation cable, optional connector
- Optional mounts: Adjustable mounts, rail and cable mounts
Product details
Technical specifications
No technical specifications available
Product codes
SAPDAB158
STK4322470
PLC4322470
Manufacturer part numberMDL802 DALI
Vendor material numberMDL802 DALI
Basic information
Package measurements (L x W x H)900 x 220 x 100 mm
Package volume19.8 l
Package weight4.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111541
BrandLEDISTYS
VendorLEDISTYS OY
The country of origin stated by the supplierFinland
