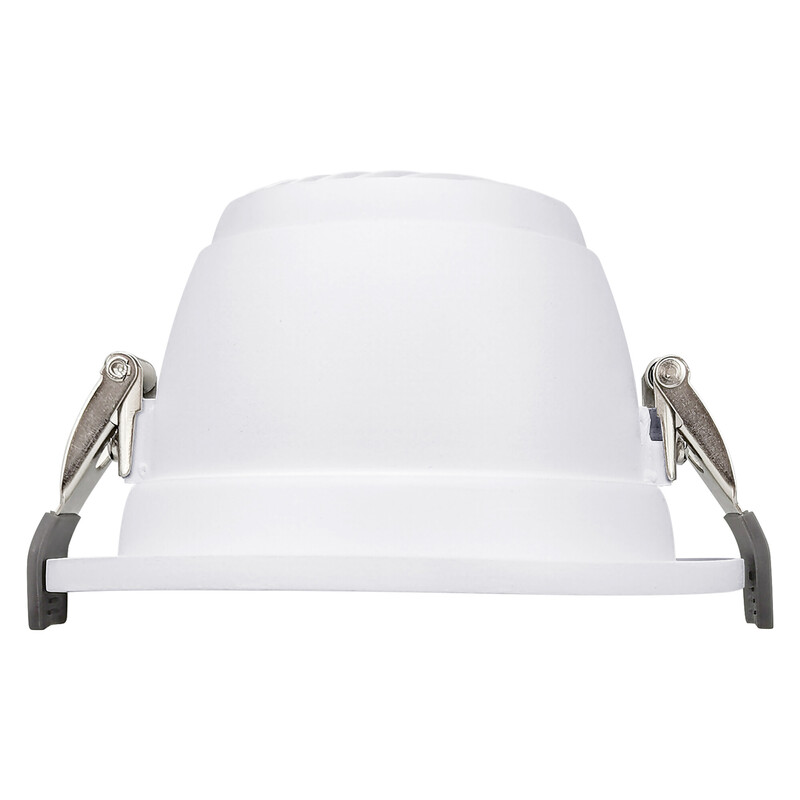

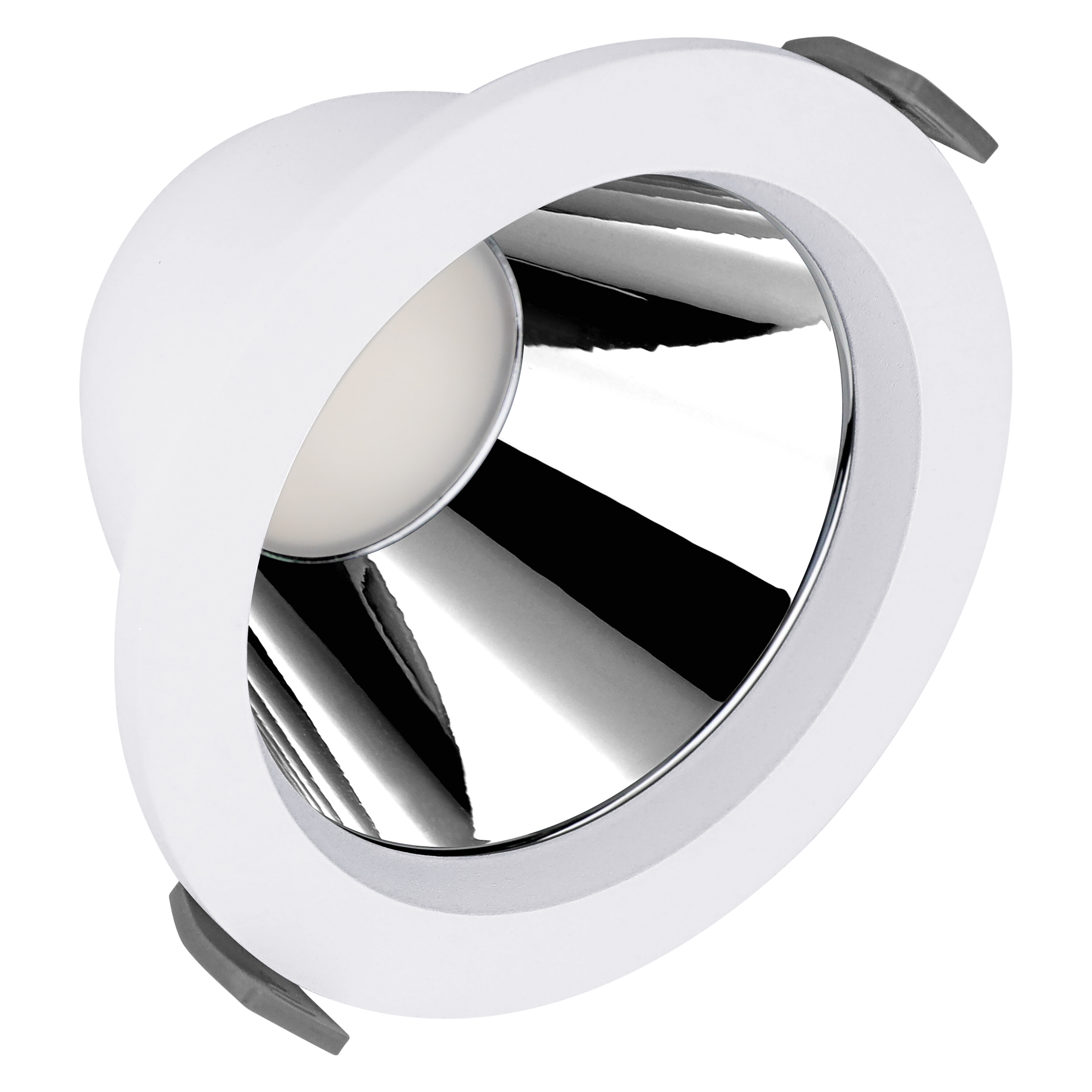

DOWNLIGHT COMFORT DL CMFT D100 13W CCT UGR19 ZB
Product code
4161208
The Downlight Comfort product family offers long-lasting downlights for various office lighting applications. With the Multi Colour feature, the color temperature of the light can be easily selected from the power supply. Zigbee Direct models can be easily and quickly connected to wireless LEDVANCE Direct Easy lighting control systems. Downlight Comfort luminaires are available with different colored frames and surface-mounted frames.
Key technical specifications:
• Luminous flux: 3000K: 1300 lm; 4000K: 1430 lm
• Color temperature: 3000 / 4000 K, CRI over 90
• Power: 13 W
• Luminous efficacy: 100 - 110 lm/W

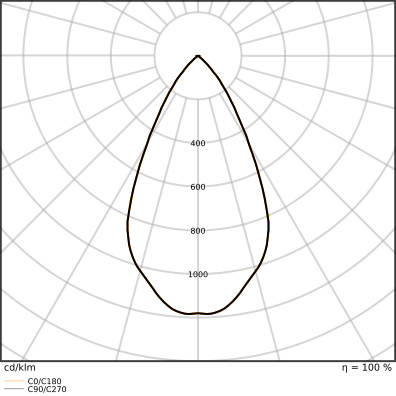

• Beam angle: 55 D
• Dimmable: Yes, Zigbee Direct, Zigbee 3.0 + Bluetooth

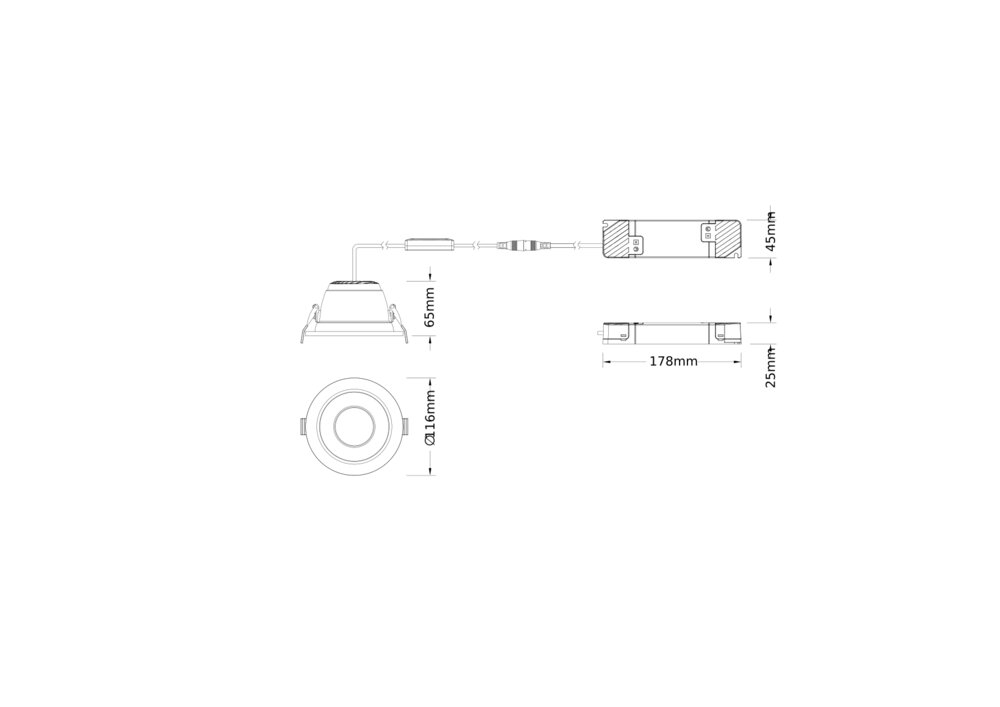

• Dimensions (diameter/height): 116 x 48 mm
• Recessed opening diameter: 100 mm
• Ingress protection rating: IP44/IP20 and IK03
• Average service life: 100,000 hours (L70/B50 +25 C)
• Operating temperature: -20…+40 C
• Warranty: 5 years
Common applications: office, lobby, and corridor lighting This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
AdjustabilityNot adjustable
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Product codes
SAPDMK705
STK4161208
PLC4161208
GTIN/EAN4099854620379
Manufacturer part number4099854620379
Vendor material number4161208
Basic information
Package measurements (L x W x H)185 x 185 x 100 mm
Package volume3.422 l
Package weight0.399 kg
Base uniteach
Package units1 / 12 / 72 / 216
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.187
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
