DOWNLIGHT DL UNIV D300 23W CCT ML SENSOR
Product code
4161142
DOWNLIGHT UNIVERSAL - the product family offers an LED downlight solution for almost any recessed opening size. The adjustable spring clips enable installation of the lights into both small and large openings. The Multi Lumen and Multi Colour features allow selection of light output and color temperature during installation. The integrated motion and dusk sensor ensures light is available when needed.
Key technical specifications:
• Luminous flux: 3000K: 1550 / 3100 lm; 4000K: 1600 / 3200 lm
• Color temperature: 3000 / 4000 K, CRI 80
• Power: 15 / 22 W
• Luminous efficacy: 135 - 145 lm/W

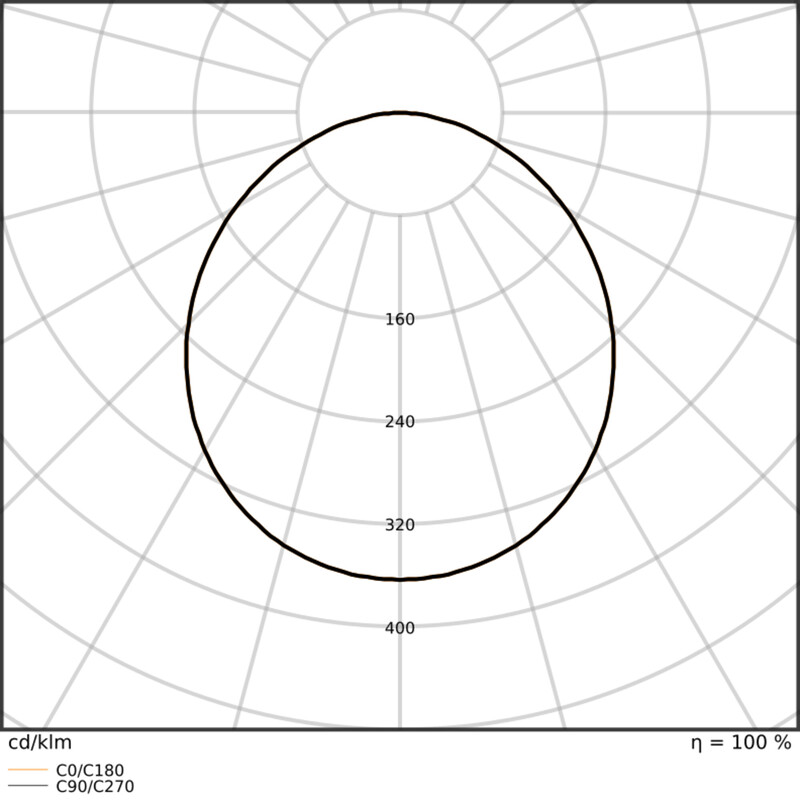

• Beam angle: 110°
• Dimmable: No
• Dimensions (diameter/height): 300 x 22 mm
• Recessed opening diameter: 65 - 260 mm
• Ingress protection rating: IP44/IP20 and IK03
• Average service life: 100,000 hours (L70/B50 +25°C)
• Operating temperature: -20…+40°C
• Warranty: 5 years
• Observation distance: 3 - 6 meters
• Observation angle: 120°
• On-time duration: 5 s - 3 min
• Dusk sensor threshold: 10 - 40 lux
Most common applications: Reception and entrance halls, corridors, other general areas This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityNot adjustable
With movement sensoryes
With presence detectoryes
Movement sensor/presence detector technologyPassive infrared
With light sensoryes
Product codes
SAPDMA110
STK4161142
PLC4161142
GTIN/EAN4099854541438
Manufacturer part number4099854541438
Vendor material number4161142
Basic information
Package measurements (L x W x H)315 x 305 x 60 mm
Package volume5.764 l
Package weight0.9 kg
Base uniteach
Package units1 / 7 / 35 / 105
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)29.669
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
