DOWNLIGHT DL UNIV D300 23W CCT ML
Product code
4161138
DOWNLIGHT UNIVERSAL - the product family offers an LED downlight solution for almost any recessed opening size. The adjustable spring clips enable installation of the lights into both small and large openings. The Multi Lumen and Multi Colour features allow selection of luminous flux and color temperature during installation.
Key technical specifications:
• Luminous flux: 3000K: 2050 / 3050 lm; 4000K: 2180 / 3200 lm
• Color temperature: 3000 / 4000 K, CRI 80
• Power: 15 / 22 W
• Luminous efficacy: 135 - 145 lm/W
• Beam angle: 110°
• Dimmable: No

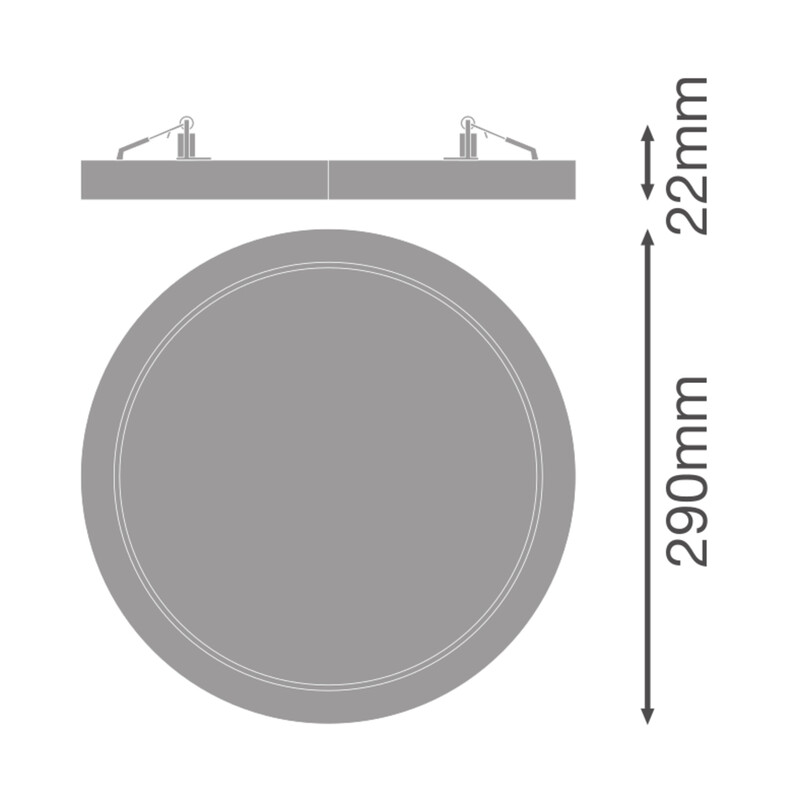

• Dimensions (diameter/height): 290 x 22 mm
• Recessed opening diameter: 65 - 260 mm
• Ingress protection rating: IP44/IP20 and IK03
• Average service life: 100,000 hours (L70/B50 +25°C)
• Operating temperature range: -20…+40°C
• Warranty: 5 years
Most common applications: Reception and entrance halls, corridors, other general areas This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityNot adjustable
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPDMA106
STK4161138
PLC4161138
GTIN/EAN4099854541155
Manufacturer part number4099854541155
Vendor material number4161138
Basic information
Package measurements (L x W x H)310 x 300 x 60 mm
Package volume5.58 l
Package weight0.94 kg
Base uniteach
Package units1 / 8 / 32 / 96
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)30.9877
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
