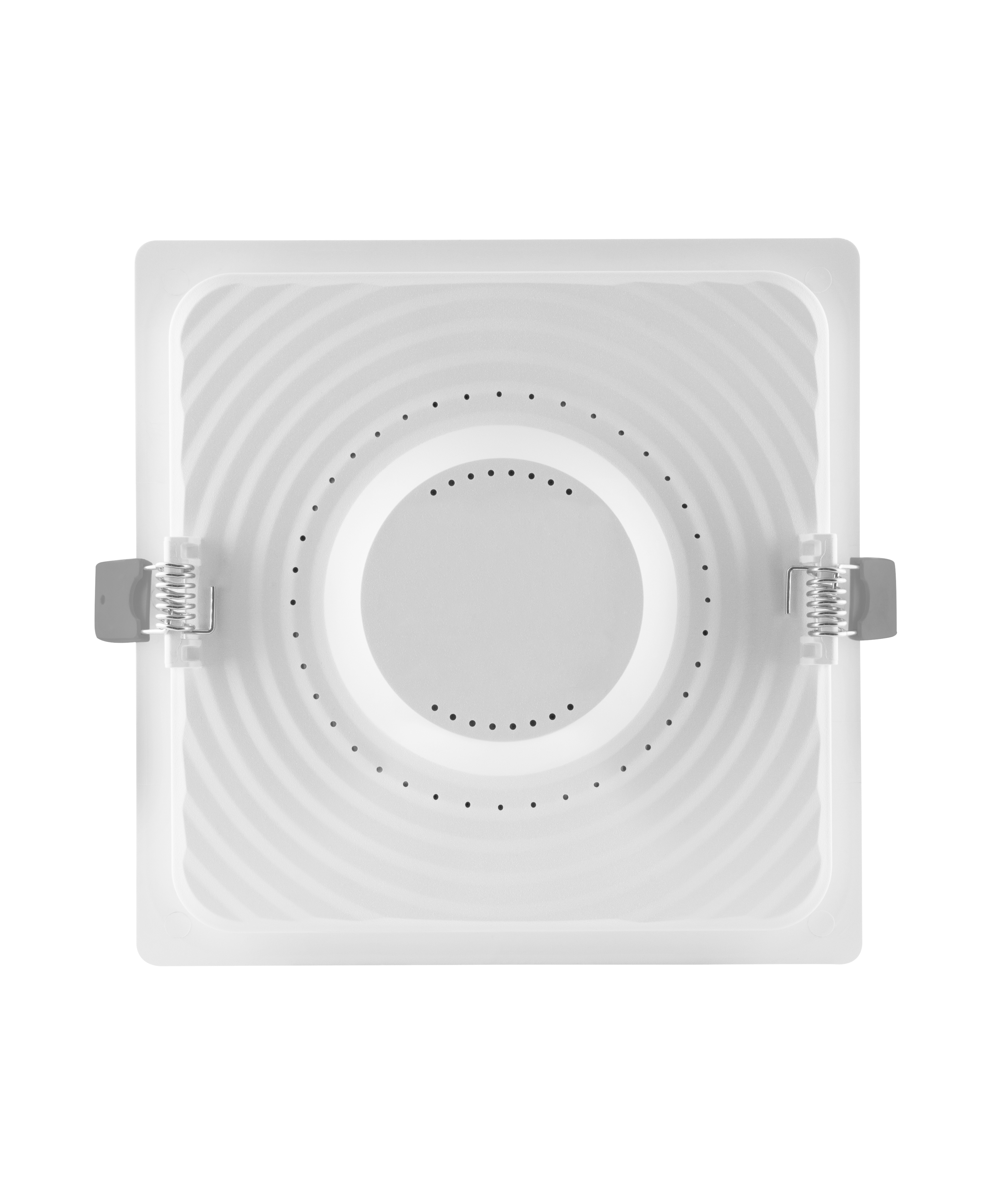

DOWNLIGHT LEDVANCE DL SLIM SQ210 18W/6500K WT
Product code
4295648
DL SLIM SQ210 18W/6500K WT IP20 LEDVO
Old product EAN: 4058075052628
LEDVANCE Downlight Slim recessed lights feature an integrated LED driver, making installation in confined spaces significantly easier. The Downlight Slim recessed lights also come pre-equipped with a two-pin spring connector, enabling easy and straightforward chaining of the lights.
The LEDVANCE Downlight Slim product family includes a total of 18 different models with power ratings of 6W, 12W, and 18W. The 6W recessed lights produce approximately 430 lm luminous flux with a recessed diameter of 105 mm. The 12W recessed lights produce approximately 1020 lm luminous flux with a recessed diameter of 155 mm. The 18W recessed lights produce approximately 1530 lm luminous flux with a recessed diameter of 205 mm. All LEDVANCE Downlight Slim recessed lights also include square recessed models, where the width and height of the recessed opening match the diameter of the round recessed light. For example, the recessed opening size for the 12W square model is 155 mm x 155 mm.
All LEDVANCE Downlight Slim recessed lights are available in color temperatures of 3000 K, 4000 K, and 6500 K, and surface mounting frames are available separately. All recessed lights have a beam angle of 120°, an average lifespan of 30,000 hours, and a three-year (3) product warranty. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingyes
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityNot adjustable
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Product codes
SAPCFD536
STK4295648
PLC4295648
GTIN/EAN4058075079373
Manufacturer part number4058075079373
Vendor material number4295648
Basic information
Package measurements (L x W x H)225 x 225 x 30 mm
Package volume1.519 l
Package weight0.527 kg
Base uniteach
Package units1 / 6 / 48 / 192 / 192
Package contents–
UNSPSC39111515
BrandLEDVANCE
VendorLEDVANCE OY
Documents (17)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.1182
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
