DOWNLIGHT SPOT COMBO SP CBO ADJ IP65 6W CCT WT DALI
Product code
4161299
SPOT COMBO product family offers dimmable and versatile recessed spotlights with a good IP rating. With the Multi Colour feature, the color temperature of the light emitted by the luminaire can be adjusted using a slide switch located beneath the frame.
Key technical specifications:
• Luminous flux: 2700 K: 540 lm, 3000 & 4000 K: 570 lm
• Color temperature: 2700 / 3000 / 4000 K, CRI 90
• Power: 6 W
• Luminous efficacy: 95 lm/W
• Beam angle: 60°
• Dimmable: Yes, DALI-2 & PushDIM

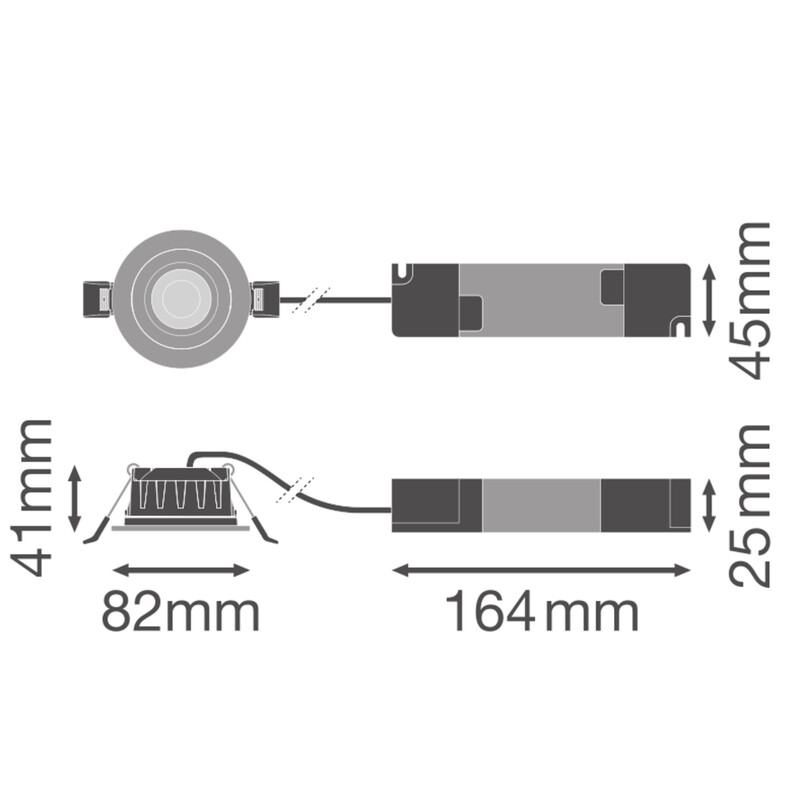

• Dimensions (Diameter/Height): 82 x 41 mm

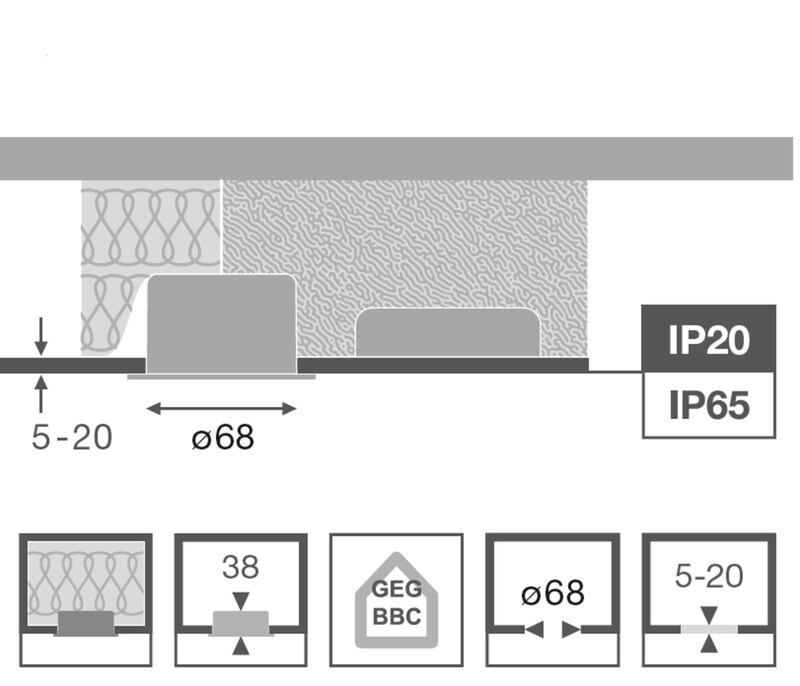

• Cut-out diameter: 68 mm
• Protection class: IP65/IP50 and IK03
• Average service life: 50,000 hours (L70/B50 +25°C)
• Operating ambient temperature: -20…+40°C
• Warranty: 5 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPDPN090
STK4161299
PLC4161299
GTIN/EAN4099854736551
Manufacturer part number4099854736551
Vendor material number4161299
Basic information
Package measurements (L x W x H)177 x 100 x 65 mm
Package volume1.15 l
Package weight0.323 kg
Base uniteach
Package units1 / 20 / 60 / 360
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.199
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
