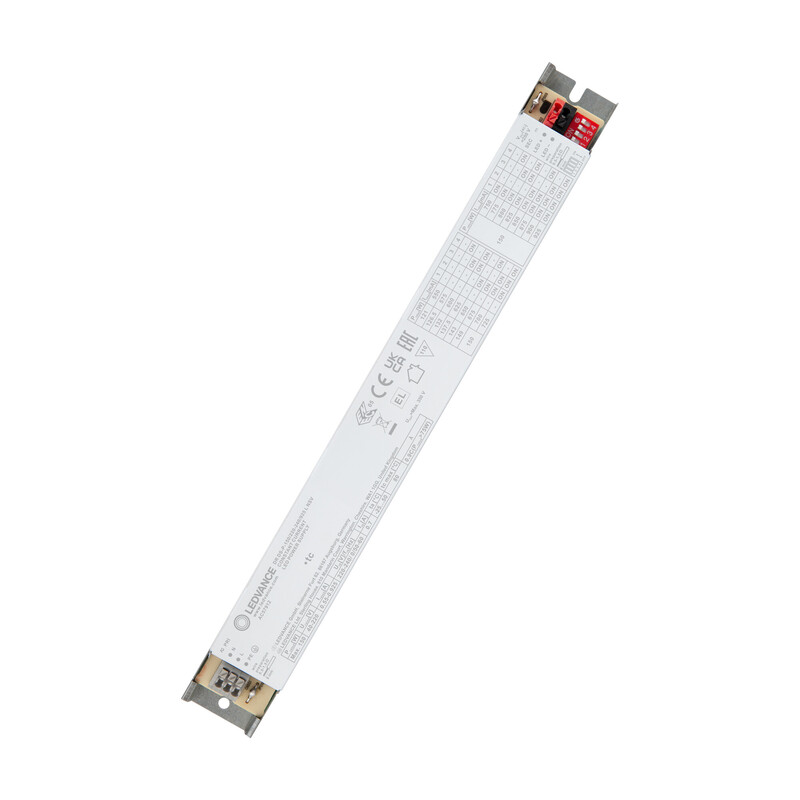

ELECTRONIC BALLAST DR DS-P-150/220-240/925 L NSV

LED DRIVER DIP-SWITCH LINEAR NON-SELV - From this product family you can find a comprehensive selection of high-quality non-SELV LED constant current drivers. The dimensions and mounting hole positions comply with Zhaga guidelines, allowing the use of existing mounting solutions.

Key technical specifications:

• Nominal power: 150 W
• Operating voltage and current: AC: 198 - 264 V / DC: 180 - 270 V, 640 mA
• Secondary voltage: 40 - 220 V, non-SELV
• Secondary current: 550 - 925 mA
• Secondary current selection: DIP switch, current selectable in 25 mA steps
• Efficiency at full load: 94 %
• Enclosure rating: IP20
• Dimmable: No

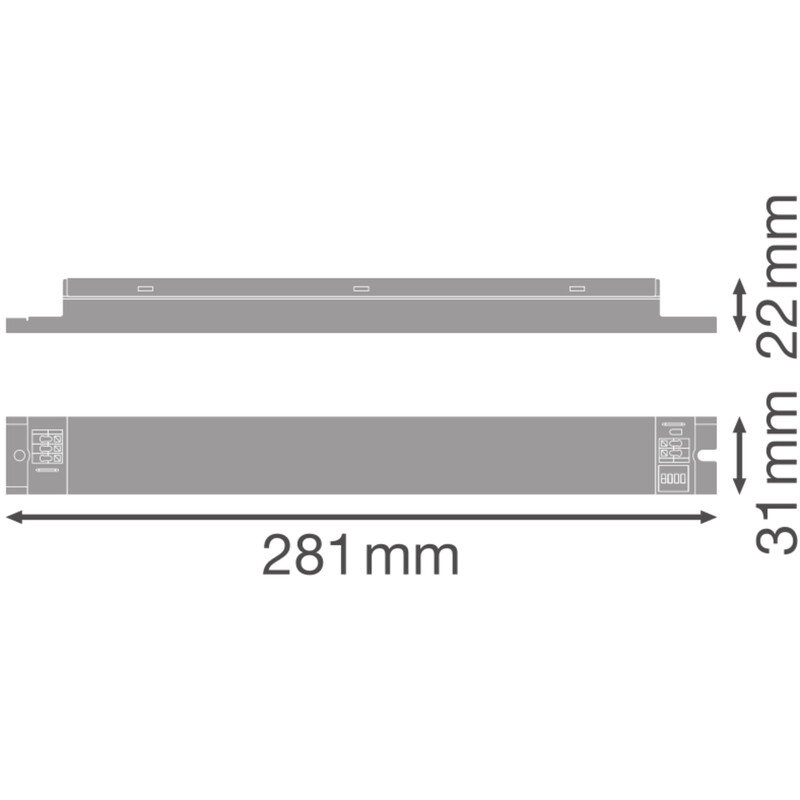

• Dimensions (Length/Width/Height): 281 x 31 x 22 mm
• Operating temperature: -25...+50 C
• Max. Tc temperature: 80 C
• Average service life: 100 000 h (L70/B50 +25 C)
• Product warranty: 5 years
• Certifications: CE, ENEC, EL

This product description is an automated translation of the original Finnish description.
