ELECTRONIC BALLAST DR EXTERNAL DALI-P 1X7-37W

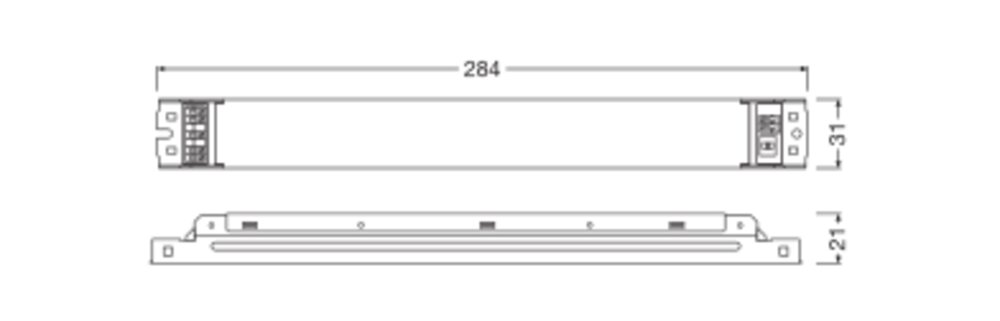

LED DRIVER DALI EXTERNAL - From this product family, you can find the LED power supply for LEDVANCE External LED tubes. It can be dimmed using a DALI-2 lighting control system or a push button. With the LEDVANCE DALI External system, it is possible to implement DALI-dimmable lighting with interchangeable LED tubes. Key technical specifications: Rated power: 46 W Operating voltage and current: 220...240 V, 210 mA Secondary voltage: 20...48 V, SELV Secondary current: 1 x 350...860 mA Secondary current selection: DIP switch Efficiency at maximum load: 86 % Enclosure rating: IP20 Dimmable: Yes, DALI-2, PushDIM Dimensions (Length/Width/Height): 284 x 31 x 21 mm Operating temperature: -20...+50 °C Max. Tc temperature: 80 °C Average service life: 100 000 h (L70/B50 +25 °C) Product warranty: 5 years Certifications: CE, ENEC NOTE! Suitable for use only with LEDVANCE LED TUBE EXTERNAL tubes. This product description is an automated translation of the original Finnish description.
