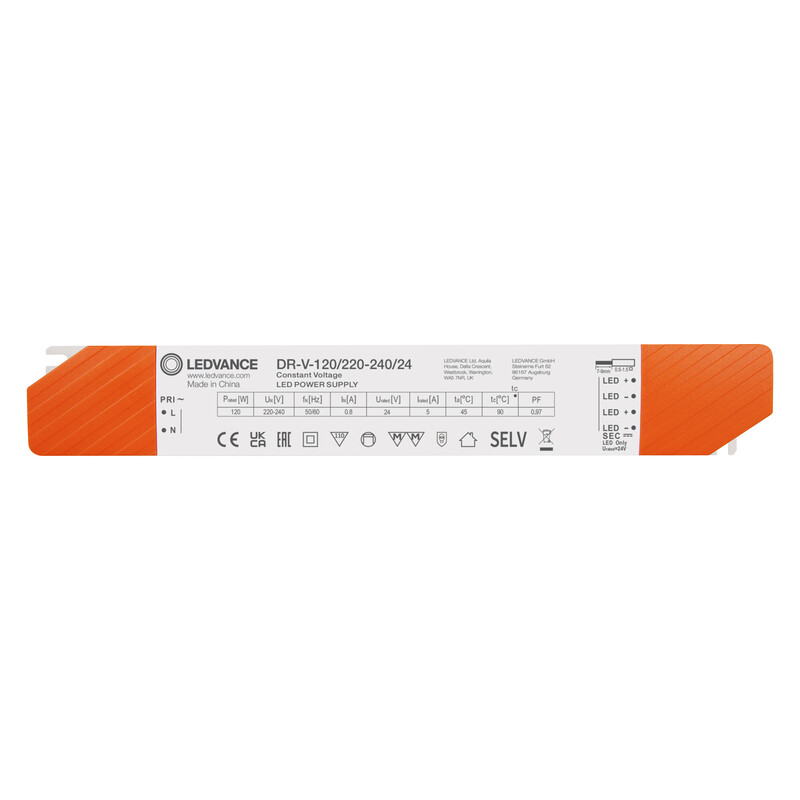

ELECTRONIC BALLAST DR VAL 120W/220-240/24V ON/OFF

LED DRIVER VALUE ON/OFF - From this product family, you can find a cost-effective LED constant voltage source suitable for LED light strips. Constant voltage sources are equipped with fixed heat sink covers.

Key technical specifications:

• Nominal power: 120 W
• Operating voltage and current: 220 - 240 V, 800 mA
• Secondary voltage: 24 V, SELV
• Secondary current: 5000 mA
• Efficiency at full load: 97 %
• Enclosure rating: IP20
• Dimmable: No

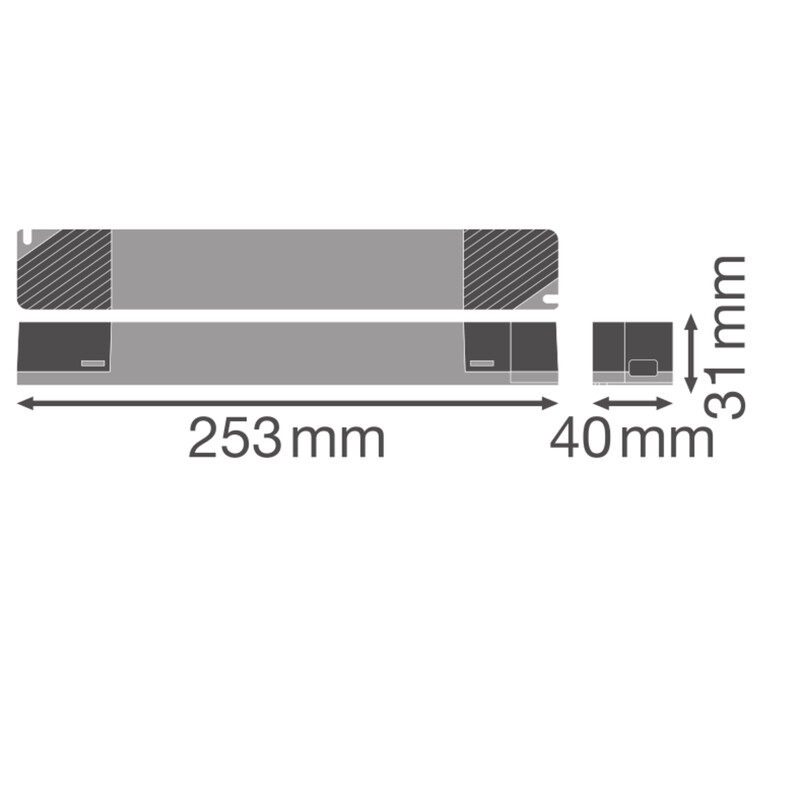

• Dimensions (Length/Width/Height): 253 x 40 x 31 mm
• Operating temperature: -20…+45 C
• Max. Tc temperature: 90 C
• Average service life: 35 000 h (L70/B50 +25 C)
• Product warranty: 3 years. Includes heat sink covers

This product description is an automated translation of the original Finnish description.
