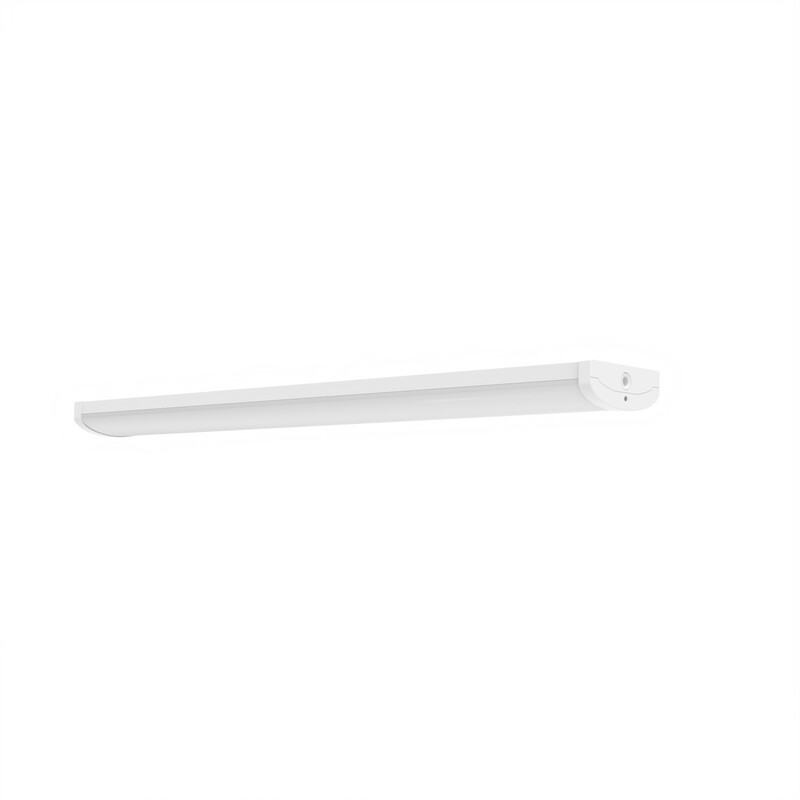

INDUSTR. LUMIN. LINEAR SURFACE LN SF IP44 1200 4384LM 840 DA

Product code
4324771
The LEDVANCE LINEAR SURFACE lamps are excellently suited for general lighting in various spaces. In addition to their outstanding luminous efficacy of 137 lm/W, they are easy to install thanks to through-wiring. The Linear Surface product family lamps are 5x 1.5mm through-wired. Connection cables can be brought into the lamp from either end or from the center of the lamp. The diffuser of the Linear Surface lamps is made of durable polycarbonate, which ensures even light distribution. The lamp housing is painted steel, making it robust. LEDVANCE Linear Surface lamps are suitable for use indoors at temperatures between -10°C and +40°C, are rated IP44 and IK08, and have been granted ENEC certification. The average service life of the lamps is 70,000 hours (L70/B50 @ +25°C), and the product family is covered by a five-year product warranty. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Lamp holderOther
Housing materialSteel
Housing colourWhite
Material coverPlastic, opal

Product codes

SAPCZC100
STK4324771
PLC4324771
GTIN/EAN4058075733350
Manufacturer part number4058075733350
Vendor material number4324771

Basic information

Package measurements (L x W x H)1189 x 172 x 70 mm
Package volume14.316 l
Package weight3.005 kg
Base uniteach
Package units1 / 4 / 8 / 40
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)93.155
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001043

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
