INDUSTRIAL LUMIN. OPEN LOW BAY LB FLEX 11680LM 73W/840 120D

Product code
4324906
LEDVANCE LOW BAY FLEX open industrial luminaires make an impact with easy installation, up to 160 lm/W luminous efficacy, and up to 100,000 hours of service life. Thanks to comprehensive opening angle and luminous flux options, they enable high-quality lighting in industrial spaces or retail stores. With optional spherical guards, the luminaires can be easily adapted for lighting indoor sports facilities.

Key technical specifications:
  • Luminous flux: 11680 lm
  • Color temperature: 4000 K, CRI80
  • Power: 73 W
  • Luminous efficacy: 160 lm/W
  • Opening angle: 120D, very wide
  • Dimmable: No

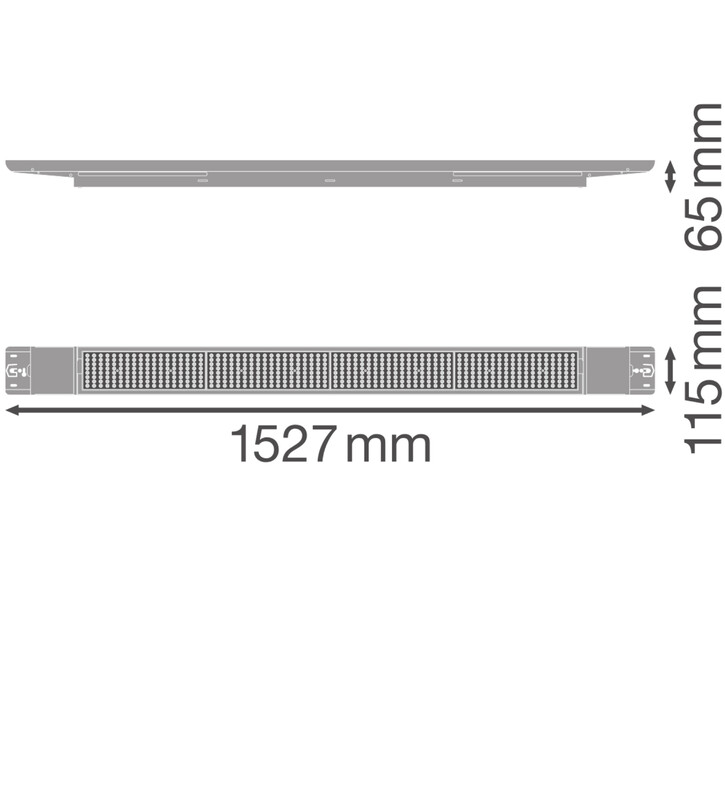

  • Dimensions (Length/Width/Height): 1527 x 115 x 65 mm
  • Protection class: IP23 and IK08
  • Conduit entry: 5x 2.5mm2
  • Average service life: 100,000 h (L70/B50 +25 C)
  • Operating temperature: -25…+50 C
  • Warranty: 5 years
  • Certifications: CE, ENEC, TÜV SÜD
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)High bay luminaire (EC001716)
Suitable for ceiling mountingyes
Suitable for wall mountingno
Suitable for suspended mountingyes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Suitable for auxiliary lampno
Lamp holderNone
Housing colourWhite
Voltage typeAC
Nominal voltage220-240 V
Nominal current320-320 mA
Exchangeable control gearno
With control gearyes
With movement sensorno

Product codes

SAPDCM728
STK4324906
PLC4324906
GTIN/EAN4099854164286
Manufacturer part number4099854164286
Vendor material number4324906

Basic information

Package measurements (L x W x H)106 x 1572 x 154 mm
Package volume25.661 l
Package weight4.605 kg
Base uniteach
Package units1 / 3 / 3 / 21
Package contents
UNSPSC39111547
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)32.9731
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
