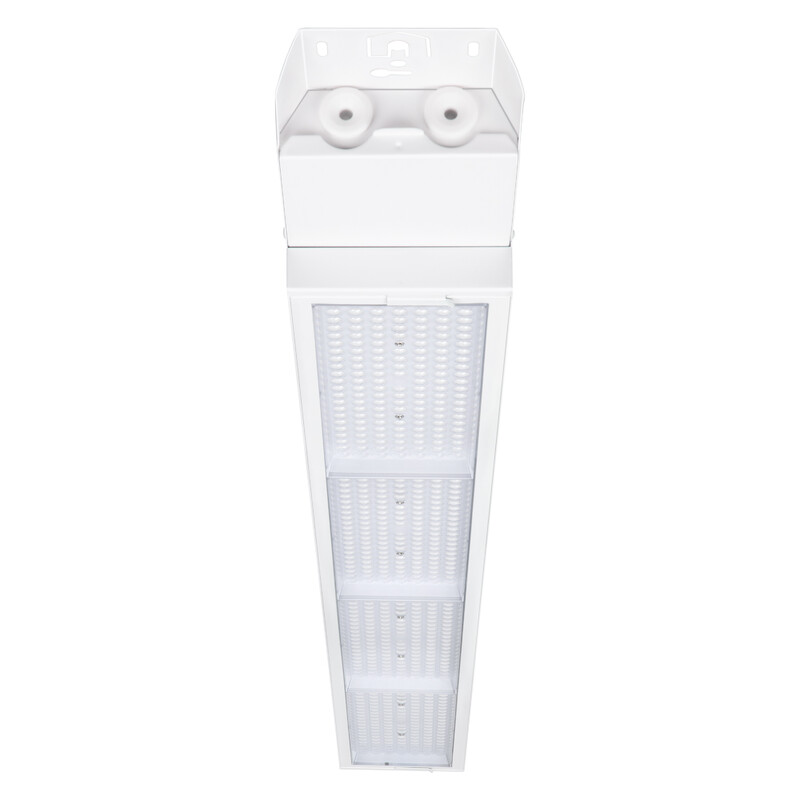

INDUSTRIAL LUMIN. OPEN LOW BAY LB FLEX 22000LM 140W/840 60D

Product code
4324909
LEDVANCE LOW BAY FLEX open industrial luminaires make an impact with easy installation, up to 160 lm/W luminous efficacy, and up to 100,000 hours of service life. Thanks to comprehensive opening angle and luminous flux options, they enable high-quality lighting in industrial spaces or retail stores. With optional spherical guards, the luminaires can easily be adapted for lighting indoor sports facilities.

Key technical specifications:
  • Luminous flux: 22000 lm
  • Color temperature: 4000 K, CRI80
  • Power: 140 W
  • Luminous efficacy: 155 lm/W
  • Opening angle: 60D, narrow
  • Dimmable: No

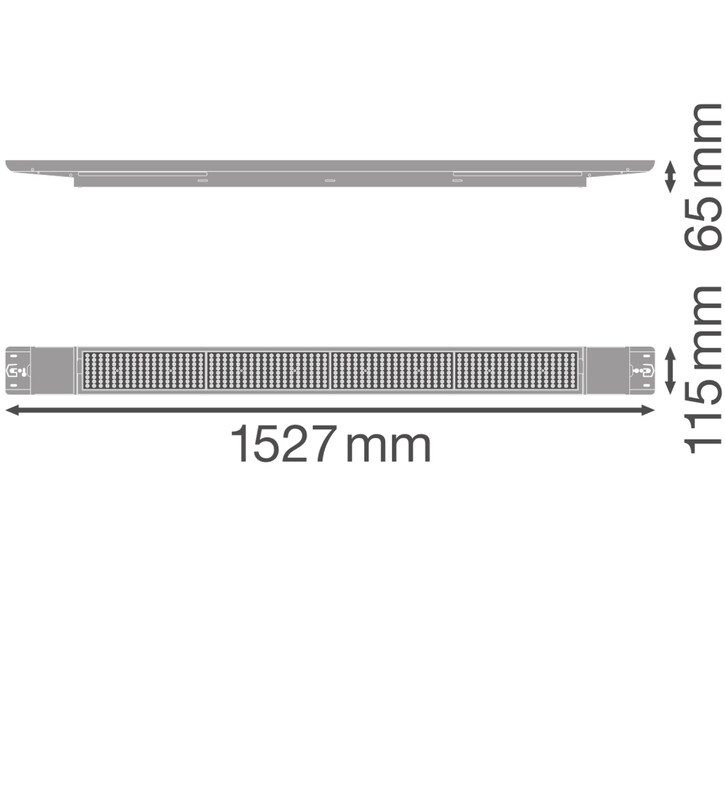

  • Dimensions (Length/Width/Height): 1527 x 115 x 65 mm
  • Protection rating: IP23 and IK08
  • Conduit entry: 5x 2.5mm2
  • Average service life: 100 000 h (L70/B50 +25 C)
  • Operating temperature: -25…+50 C
  • Warranty: 5 years
  • Certifications: CE, ENEC, TÜV SÜD
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)High bay luminaire (EC001716)
Suitable for ceiling mountingyes
Suitable for wall mountingno
Suitable for suspended mountingyes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Suitable for auxiliary lampno
Lamp holderNone
Housing colourWhite
Voltage typeAC
Nominal voltage220-240 V
Nominal current650-650 mA
Exchangeable control gearno
With control gearyes
With movement sensorno

Product codes

SAPDCM731
STK4324909
PLC4324909
GTIN/EAN4099854163630
Manufacturer part number4099854163630
Vendor material number4324909

Basic information

Package measurements (L x W x H)106 x 1572 x 154 mm
Package volume25.661 l
Package weight4.905 kg
Base uniteach
Package units1 / 3 / 3 / 21
Package contents
UNSPSC39111547
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)35.1212
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
