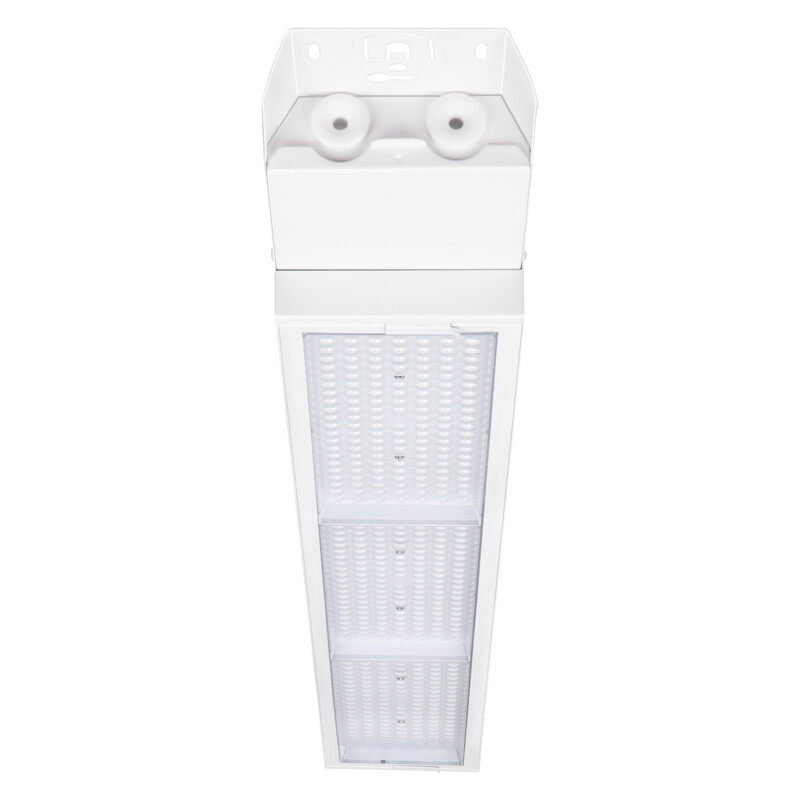

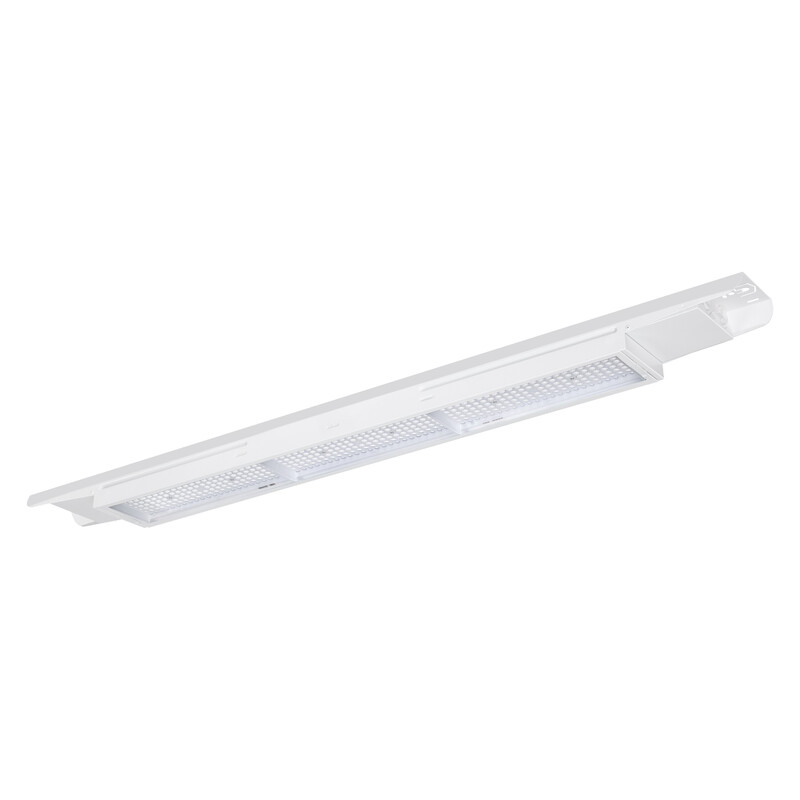

INDUSTRIAL LUMIN. OPEN LOW BAY LB FLEX 6510LM 42W/840 60D
Product code
4324900
LEDVANCE LOW BAY FLEX open industrial luminaires make an impact with easy installation, up to 160 lm/W luminous efficacy, and up to 100,000 hours of service life. Thanks to comprehensive opening angle and luminous flux options, they enable easy implementation of high-quality lighting in industrial spaces or retail stores. With separately ordered globe protectors, the luminaires can be easily adapted for lighting indoor sports facilities.
Key technical specifications:
Key technical specifications:
- Luminous flux: 6510 lm
- Color temperature: 4000 K, CRI80
- Power: 42 W
- Luminous efficacy: 155 lm/W
- Opening angle: 60D, narrow
- Dimmable: No

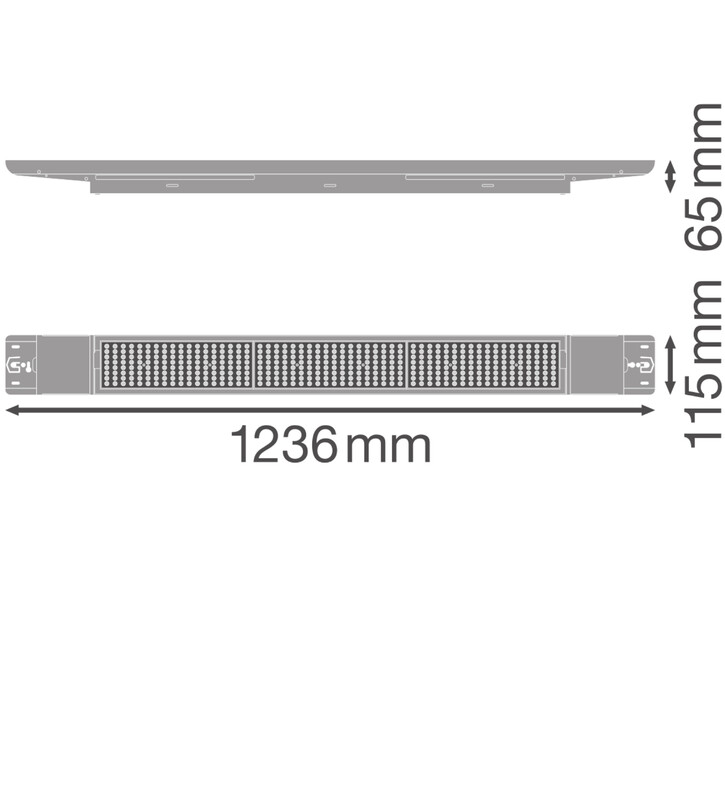

- Dimensions (Length/Width/Height): 1236 x 115 x 65 mm
- Protection class: IP23 and IK08
- Conduit entry: 5x 2.5mm2
- Average service life: 100,000 h (L70/B50 +25 C)
- Operating temperature: -25…+50 C
- Warranty: 5 years
- Certifications: CE, ENEC, TÜV SÜD
Product details
Technical specifications
Product class (ETIM)High bay luminaire (EC001716)
Suitable for ceiling mountingyes
Suitable for wall mountingno
Suitable for suspended mountingyes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Suitable for auxiliary lampno
Lamp holderNone
Housing colourWhite
Voltage typeAC
Nominal voltage220-240 V
Nominal current190-190 mA
Exchangeable control gearno
With control gearyes
With movement sensorno
Product codes
SAPDCM722
STK4324900
PLC4324900
GTIN/EAN4099854163654
Manufacturer part number4099854163654
Vendor material number4324900
Basic information
Package measurements (L x W x H)106 x 1282 x 154 mm
Package volume20.927 l
Package weight3.788 kg
Base uniteach
Package units1 / 3 / 3 / 21
Package contents–
UNSPSC39111547
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)27.1231
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
