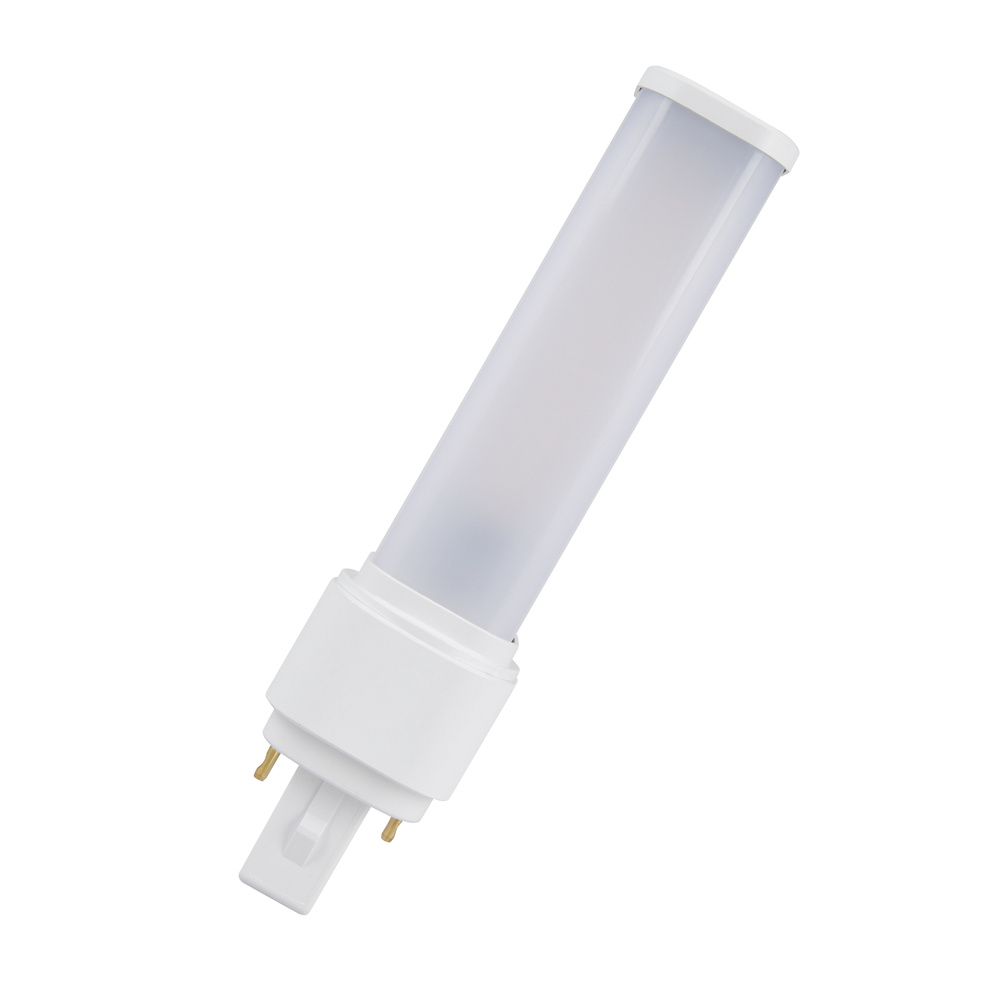

LED LAMP DULUX D10 EM 5W/840 G24D-1

Product code
4935226
The LEDVANCE DULUX LED D product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps. Important technical specifications: - Luminous flux: 600 lm (equivalent to TC-D 10 W) - Base: G24d-1 - Operation: Ballast (CCG) or 230 V (AC) - Color temperature: Neutral, 4000 K - Power: 5 W - Luminous efficacy: 120 lm/W - Energy efficiency class: E - Beam angle: 120° - Dimensions (length/diameter): 110 x 35 mm - Operating temperature: -20…+45 °C - Service life: 30,000 hours (L70/B50 +25 °C) - Warranty: 3 years - Horizontal mounting position This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current23-23 mA
Power factor0.9
Lamp power5-5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux600-600 lm
Rated luminous flux according to IEC 62612600 lm
Lamp efficacy120 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K

Product codes

SAPCZN727
STK4935226
PLC4935226
GTIN/EAN4058075823075
Manufacturer part number4058075823075
Vendor material number4935226

Basic information

Package measurements (L x W x H)37 x 37 x 113 mm
Package volume0.155 l
Package weight0.051 kg
Base uniteach
Package units1 / 10 / 560 / 4480
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
