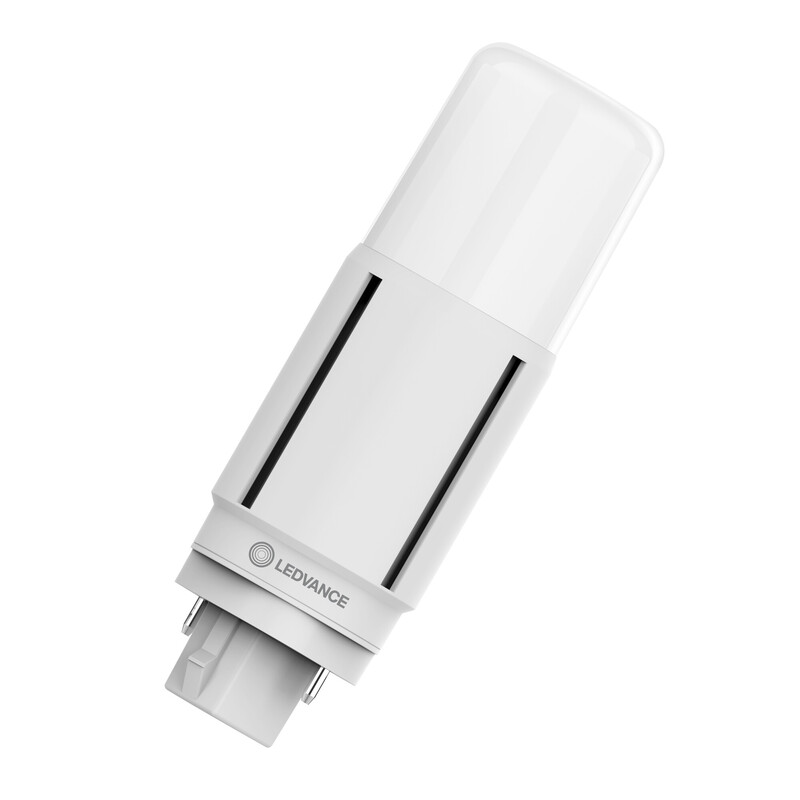

LED-LAMP DULUX D13 V EM 5,5W/830 G24D-1
Product code
4935233
The LEDVANCE DULUX LED D VERTICAL product line offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The vertical models produce nearly omnidirectional light and are suitable for vertical mounting. The light output and dimensions of the lamps correspond to those of the old compact fluorescent lamps. Key technical specifications: Luminous flux: 640 lm (equivalent to TC-D 13 W) Base: G24d Operation: Ballast (CCG) or 230 V (AC) Color temperature: 3000 K Power: 5.5 W Luminous efficacy: 116 lm/W Energy efficiency class: E Beam angle: 300D Dimensions (length/diameter): 103 x 37.7 mm Operating temperature: -20…+45°C Service life: 30,000 hours (L70/B50 +25°C) Warranty: 3 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current28-28 mA
Power factor0.9
Lamp power5.5-5.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux640-640 lm
Rated luminous flux according to IEC 62612640 lm
Lamp efficacy116 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPCZZ345
STK4935233
PLC4935233
GTIN/EAN4058075821811
Manufacturer part number4058075821811
Vendor material number4935233
Basic information
Package measurements (L x W x H)41 x 41 x 109 mm
Package volume0.183 l
Package weight0.08 kg
Base uniteach
Package units1 / 10 / 430 / 3440
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
