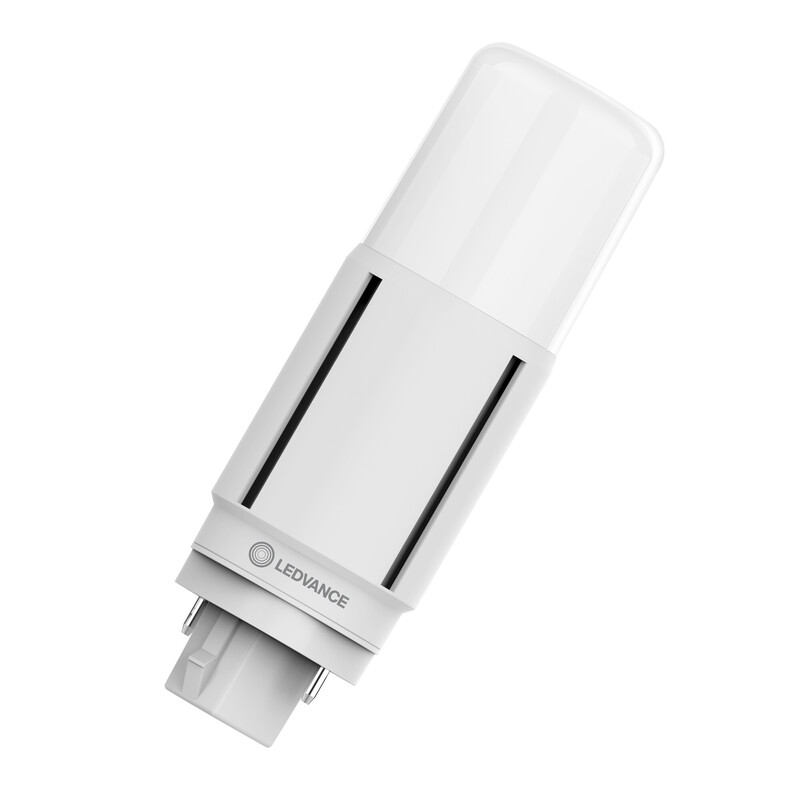

LED-LAMP DULUX D13 V EM 5,5W/840 G24D-1
Product code
4935234
The LEDVANCE DULUX LED D VERTICAL product line offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The vertical models produce nearly omnidirectional light and are suitable for vertical mounting positions. The light output and dimensions of the lamps match those of the old compact fluorescent lamps. Key technical specifications: Luminous flux: 700 lm (equivalent to TC-D 13 W) Base: G24d Operation: Ballast (CCG) or 230 V (AC) Color temperature: 4000 K Power: 5.5 W Luminous efficacy: 127 lm/W Energy efficiency class: E Beam angle: 300D Dimensions (Length/diameter): 103 x 37.7 mm Operating temperature: -20…+45°C Service life: 30,000 hours (L70/B50 +25°C) Warranty: 3 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current28-28 mA
Power factor0.9
Lamp power5.5-5.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux700-700 lm
Rated luminous flux according to IEC 62612700 lm
Lamp efficacy127 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Product codes
SAPCZZ346
STK4935234
PLC4935234
GTIN/EAN4058075821835
Manufacturer part number4058075821835
Vendor material number4935234
Basic information
Package measurements (L x W x H)41 x 41 x 109 mm
Package volume0.183 l
Package weight0.08 kg
Base uniteach
Package units1 / 10 / 430 / 3440
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
