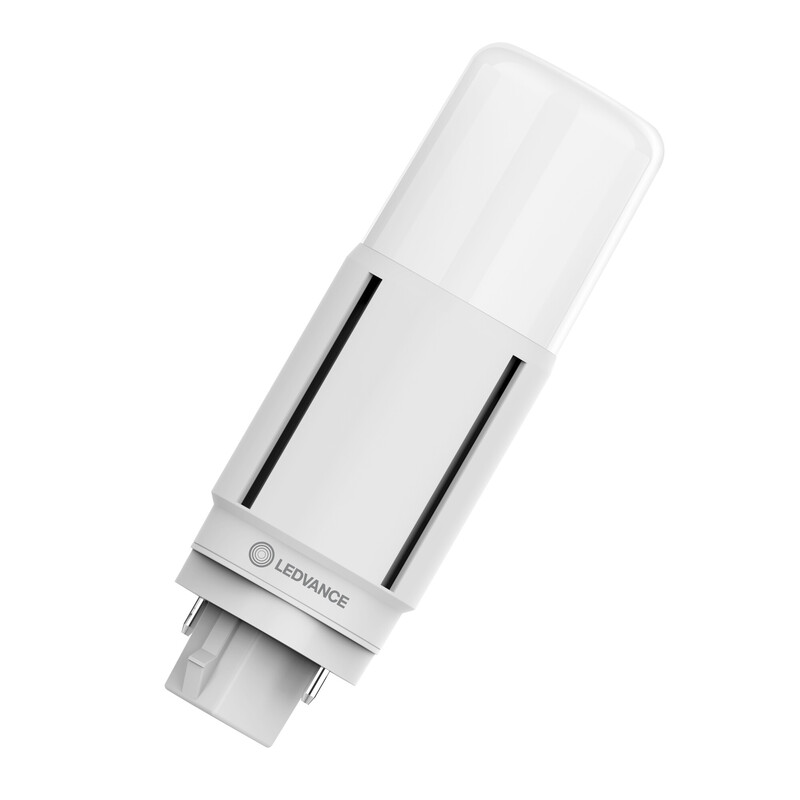

LED-LAMP DULUX D18 V EM 7,5W/840 G24D-2
Product code
4935236
The LEDVANCE DULUX LED D VERTICAL product line offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued pin-based compact fluorescent lamps. The vertical models produce nearly omnidirectional light and are suitable for vertical mounting. The light output and dimensions of the lamps match those of the old compact fluorescent lamps. Key technical specifications: Luminous flux: 950 lm (equivalent to TC-D 18 W) Base: G24d Operation: Ballast (CCG) or 230 V (AC) Color temperature: 4000 K Power: 7.5 W Luminous efficacy: 126 lm/W Energy efficiency class: E Beam angle: 300D Dimensions (Length/diameter): 117 x 37.7 mm Operating temperature: -20…+45°C Service life: 30,000 hours (L70/B50 +25°C) Warranty: 3 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current38-38 mA
Power factor0.9
Lamp power7.5-7.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux950-950 lm
Rated luminous flux according to IEC 62612950 lm
Lamp efficacy126 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Product codes
SAPCZZ348
STK4935236
PLC4935236
GTIN/EAN4058075821873
Manufacturer part number4058075821873
Vendor material number4935236
Basic information
Package measurements (L x W x H)41 x 41 x 124 mm
Package volume0.208 l
Package weight0.101 kg
Base uniteach
Package units1 / 10 / 430 / 3010
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
