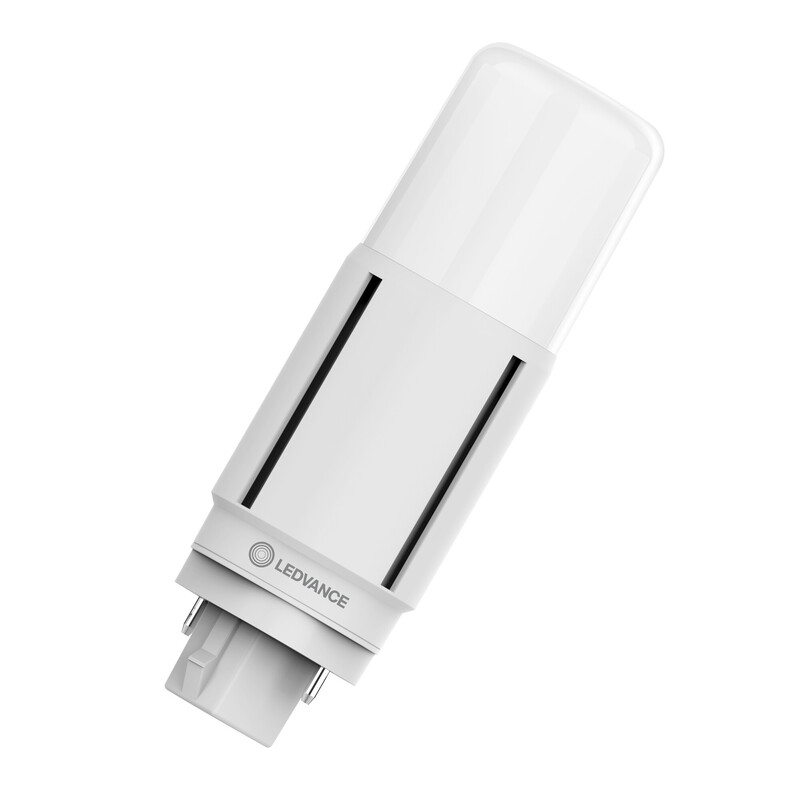

LED-LAMP DULUX D26 V EM 9,5W/830 G24D-3

Product code
4935237
The LEDVANCE DULUX LED D VERTICAL product line offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The vertical models produce nearly omnidirectional light and are suitable for vertical mounting positions. The light output and dimensions of the lamps correspond to those of the old compact fluorescent lamps. Key technical specifications: Luminous flux: 1080 lm (equivalent to TC-D 26 W) Base: G24d Operation: Ballast (CCG) or 230 V (AC) Color temperature: 3000 K Power: 9.5 W Luminous efficacy: 113 lm/W Energy efficiency class: E Beam angle: 300D Dimensions (length/diameter): 125.5 x 37.7 mm Operating temperature: -20…+45°C Service life: 30,000 hours (L70/B50 +25°C) Warranty: 3 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current48-48 mA
Power factor0.9
Lamp power9.5-9.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux1080-1080 lm
Rated luminous flux according to IEC 626121080 lm
Lamp efficacy113 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPCZZ349
STK4935237
PLC4935237
GTIN/EAN4058075821897
Manufacturer part number4058075821897
Vendor material number4935237

Basic information

Package measurements (L x W x H)41 x 41 x 134 mm
Package volume0.225 l
Package weight0.117 kg
Base uniteach
Package units1 / 10 / 430 / 2580
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
