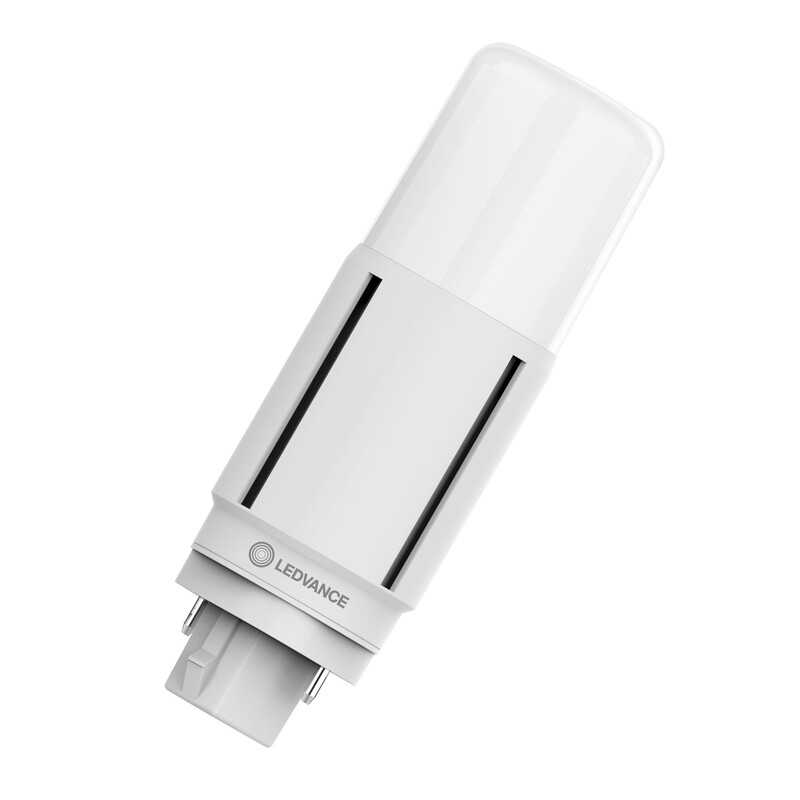

LED-LAMP DULUX D26 V EM 9,5W/840 G24D-3

Product code
4935238
The LEDVANCE DULUX LED D VERTICAL product line offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The vertical models produce nearly omnidirectional light and are suitable for vertical mounting. The light output and dimensions of the lamps match those of the old compact fluorescent lamps. Key technical specifications: Luminous flux: 1200 lm (equivalent to TC-D 26 W) Base: G24d Operation: Ballast (CCG) or 230 V (AC) Color temperature: 4000 K Power: 9.5 W Luminous efficacy: 126 lm/W Energy efficiency class: E Beam angle: 300D Dimensions (length/diameter): 125.5 x 37.7 mm Operating temperature: -20…+45°C Service life: 30,000 hours (L70/B50 +25°C) Warranty: 3 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current48-48 mA
Power factor0.9
Lamp power9.5-9.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux1200-1200 lm
Rated luminous flux according to IEC 626121200 lm
Lamp efficacy126 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K

Product codes

SAPCZZ350
STK4935238
PLC4935238
GTIN/EAN4058075821910
Manufacturer part number4058075821910
Vendor material number4935238

Basic information

Package measurements (L x W x H)41 x 41 x 134 mm
Package volume0.225 l
Package weight0.117 kg
Base uniteach
Package units1 / 10 / 430 / 2580
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
