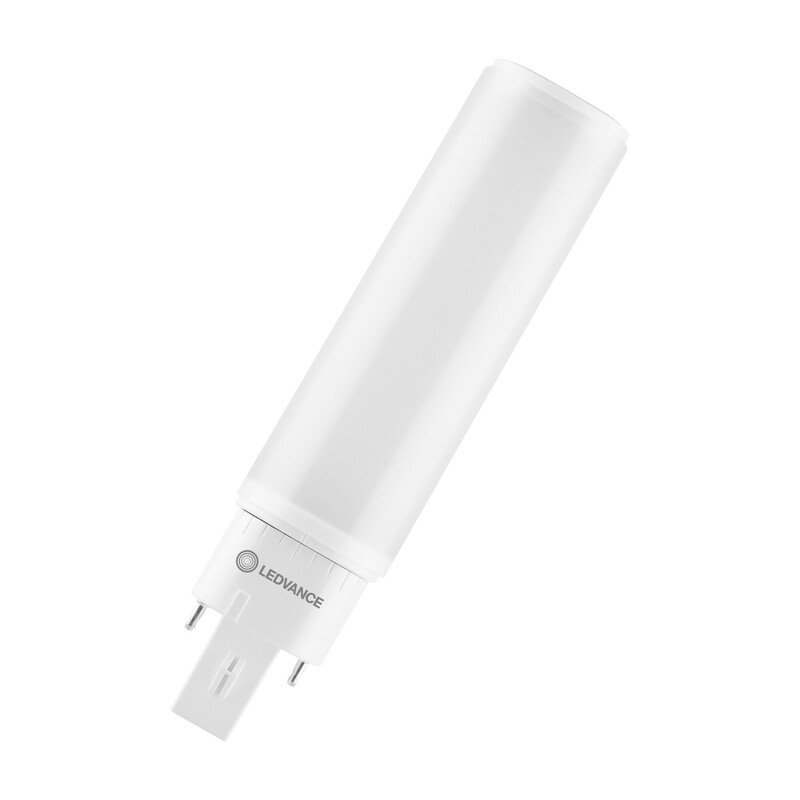

LED LAMP DULUX DE26 HF 10W/830 G24Q-3
Product code
4935243
The LEDVANCE DULUX LED D/E product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.
Technical specifications- Luminous flux: 990 lm (equivalent to TC-DEL 26 W)
- Base: G24q-3
- Operation: Compatible with ballast (ECG) or 230 V (AC)
- Color temperature: Warm, 3000 K
- Power: 10 W
- Luminous efficacy: 99 lm/W
- Energy efficiency class: F
- Beam angle: 120 D

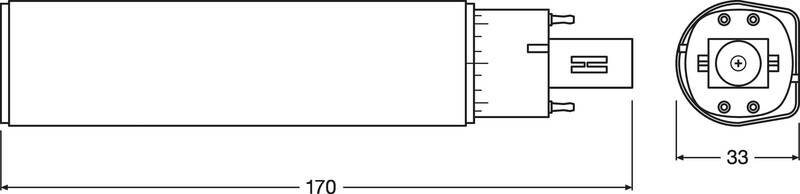

- Dimensions (length/diameter): 169.8 x 33 mm
- Operating temperature: -20…+45 C
- Service life: 30,000 hours (L70/B50 +25 C)
- Warranty: 3 years
- Compatible ballasts: ledvance.fi/ecg
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current45-45 mA
Power factor0.9
Lamp power10-10 W
Voltage typeAC
Suitable for electronic ballastyes
Suitable for magnetic ballastno
Luminous flux990-990 lm
Rated luminous flux according to IEC 62612990 lm
Lamp efficacy99 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPCZN738
STK4935243
PLC4935243
GTIN/EAN4058075822016
Manufacturer part number4058075822016
Vendor material number4935243
Basic information
Package measurements (L x W x H)37 x 37 x 174 mm
Package volume0.238 l
Package weight0.12 kg
Base uniteach
Package units1 / 10 / 240 / 2880
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
