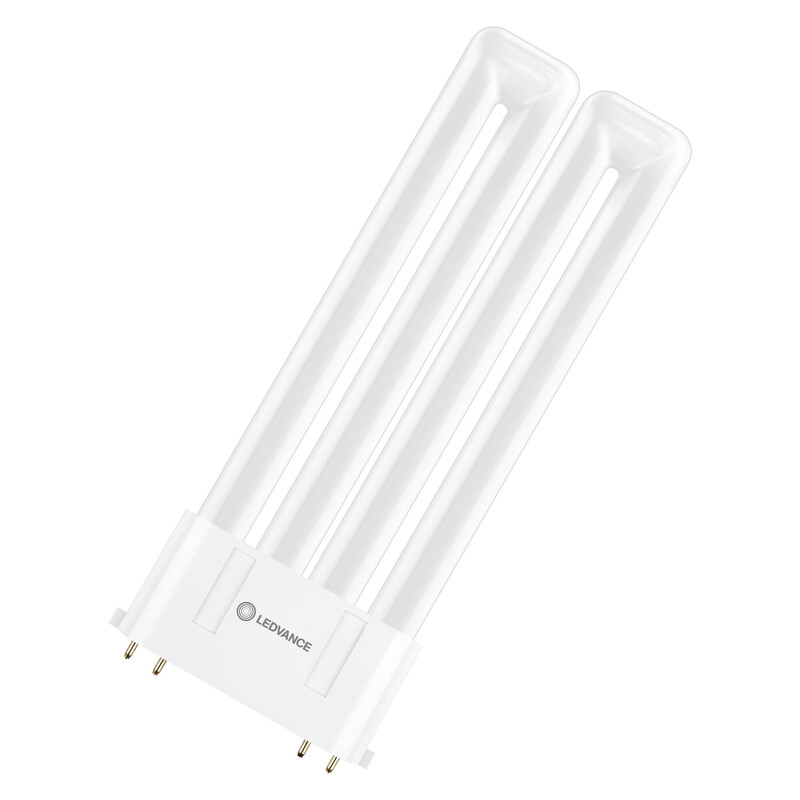

LED LAMP DULUX F36 EM 20W/830 2G10

Product code
4935273

The LEDVANCE DULUX LED F product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.

Technical specifications
  • Luminous flux: 2250 lm (equivalent to TC-F 36 W)
  • Base: 2G10
  • Operation: Compatible with ballast (ECG) or 230 V (AC)
  • Color temperature: Warm, 3000 K
  • Power: 20 W
  • Luminous efficacy: 112 lm/W
  • Energy efficiency class: E
  • Beam angle: 130D

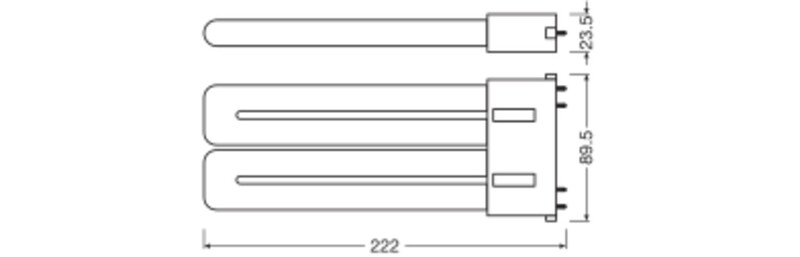

  • Dimensions (Length/diameter): 221.5 x 89.5 mm
  • Operating temperature: -20…+45 C
  • Service life: 30,000 hours (L70/B50 +25 C)
  • Warranty: 3 years
  • Compatible ballasts: ledvance.fi/ecg
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current90-90 mA
Power factor0.9
Lamp power20-20 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux2250-2250 lm
Rated luminous flux according to IEC 626122250 lm
Lamp efficacy112 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPCZN768
STK4935273
PLC4935273
GTIN/EAN4058075822498
Manufacturer part number4058075822498
Vendor material number4935273

Basic information

Package measurements (L x W x H)27 x 92 x 242 mm
Package volume0.601 l
Package weight0.17 kg
Base uniteach
Package units1 / 10 / 320 / 1280
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
