LED LAMP DULUX F36 EM 20W/840 2G10
Product code
4935274
The LEDVANCE DULUX LED F product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.
Technical specifications- Luminous flux: 2500 lm (equivalent to TC-F 36 W)
- Base: 2G10
- Operation: Compatible with ballast (ECG) or 230 V (AC)
- Color temperature: Neutral, 4000 K
- Power: 20 W
- Luminous efficacy: 125 lm/W
- Energy efficiency class: E
- Beam angle: 130D

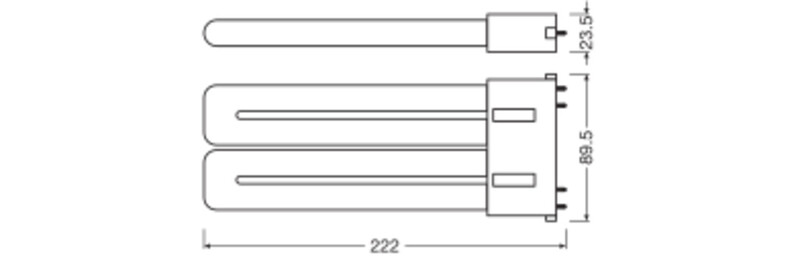

- Dimensions (Length/diameter): 221.5 x 89.5 mm
- Operating temperature: -20…+45 C
- Service life: 30,000 hours (L70/B50 +25 C)
- Warranty: 3 years
- Compatible ballasts: ledvance.fi/ecg
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current90-90 mA
Power factor0.9
Lamp power20-20 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux2500-2500 lm
Rated luminous flux according to IEC 626122500 lm
Lamp efficacy125 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Product codes
SAPCZN769
STK4935274
PLC4935274
GTIN/EAN4058075822511
Manufacturer part number4058075822511
Vendor material number4935274
Basic information
Package measurements (L x W x H)27 x 92 x 242 mm
Package volume0.601 l
Package weight0.17 kg
Base uniteach
Package units1 / 10 / 320 / 1280
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
