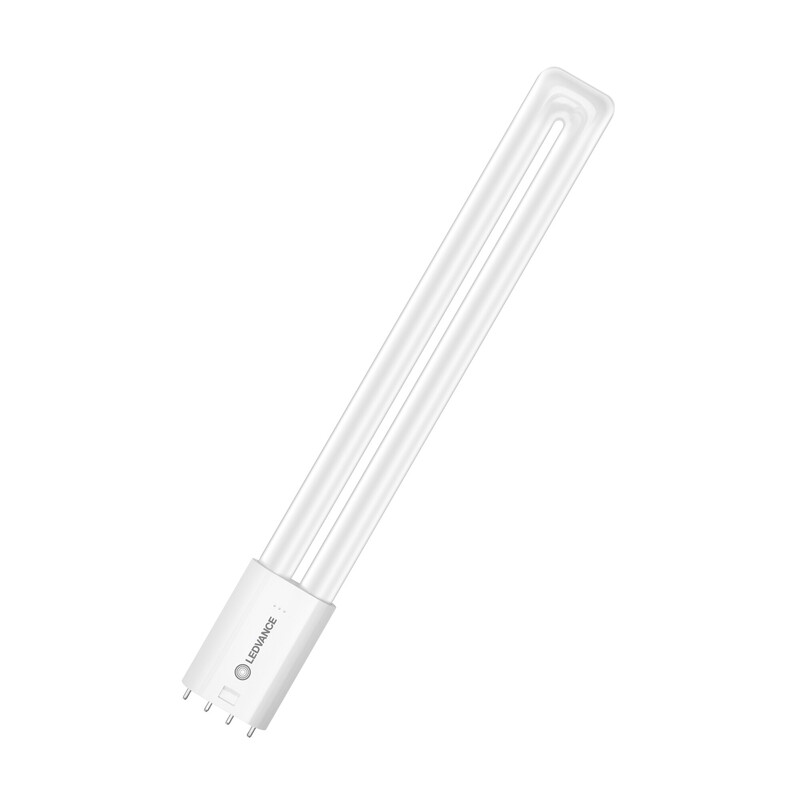

LED LAMP DULUX L24 HF 12W/830 2G11
Product code
4935263
The LEDVANCE DULUX LED L product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued pin-based compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.
Technical specifications- Luminous flux: 1350 lm (equivalent to TC-L 24 W)
- Base: 2G11
- Operation: Compatible with ballast (ECG) or 230 V (AC)
- Color temperature: Warm, 3000 K
- Power: 12 W
- Luminous efficacy: 112 lm/W
- Energy efficiency class: E
- Beam angle: 140D
- Dimensions (Length/diameter): 324.5 x 44 mm
- Operating temperature: -20…+45 C
- Service life: 30,000 hours (L70/B50 +25 C)
- Warranty: 3 years
- Compatible ballasts: ledvance.fi/ecg
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current52-52 mA
Power factor0.9
Lamp power12-12 W
Voltage typeAC
Suitable for electronic ballastyes
Suitable for magnetic ballastno
Luminous flux1350-1350 lm
Rated luminous flux according to IEC 626121350 lm
Lamp efficacy112 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPCZN758
STK4935263
PLC4935263
GTIN/EAN4058075822092
Manufacturer part number4058075822092
Vendor material number4935263
Basic information
Package measurements (L x W x H)47 x 27 x 373 mm
Package volume0.473 l
Package weight0.14 kg
Base uniteach
Package units1 / 10 / 240 / 1680
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
