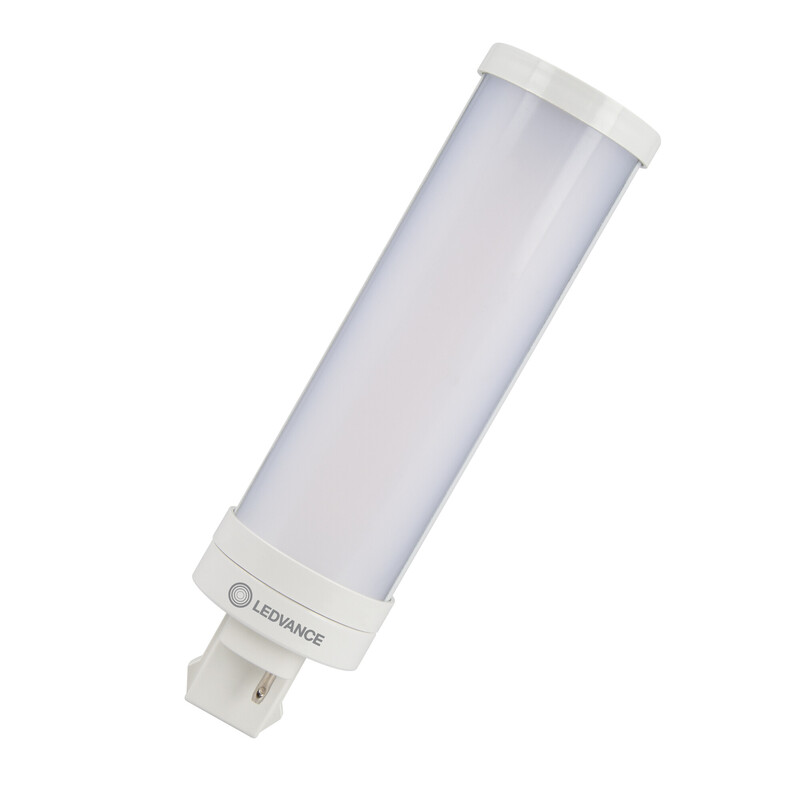

LED LAMP DULUX T13 EM 6W/830 GX24D-1

Product code
4935245
<b>LEDVANCE DULUX LED T</b> product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued pin-based compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.<br /><br /><b>Key technical specifications:</b><br /><ul><li>Luminous flux: 630 lm (equivalent to TC-T 13 W)</li><li>Base: GX24d-1</li><li>Operation: Ballast (CCG) or 230 V (AC)</li><li>Color temperature: Warm, 3000 K</li><li>Power: 6 W</li><li>Luminous efficacy: 105 lm/W</li><li>Energy efficiency class: F</li><li>Beam angle: 120 D</li><li>Dimensions (length/diameter): 132 x 38 mm</li><li>Operating temperature: -20…+45 C</li><li>Lifespan: 30,000 hours (L70/B50 +25 C)</li><li>Warranty: 3 years</li></ul> This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current29-29 mA
Power factor0.9
Lamp power6-6 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux630-630 lm
Rated luminous flux according to IEC 62612630 lm
Lamp efficacy105 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPCZN740
STK4935245
PLC4935245
GTIN/EAN4058075823211
Manufacturer part number4058075823211
Vendor material number4935245

Basic information

Package measurements (L x W x H)41 x 41 x 138 mm
Package volume0.232 l
Package weight0.081 kg
Base uniteach
Package units1 / 10 / 430 / 2580
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Documents (5)

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
