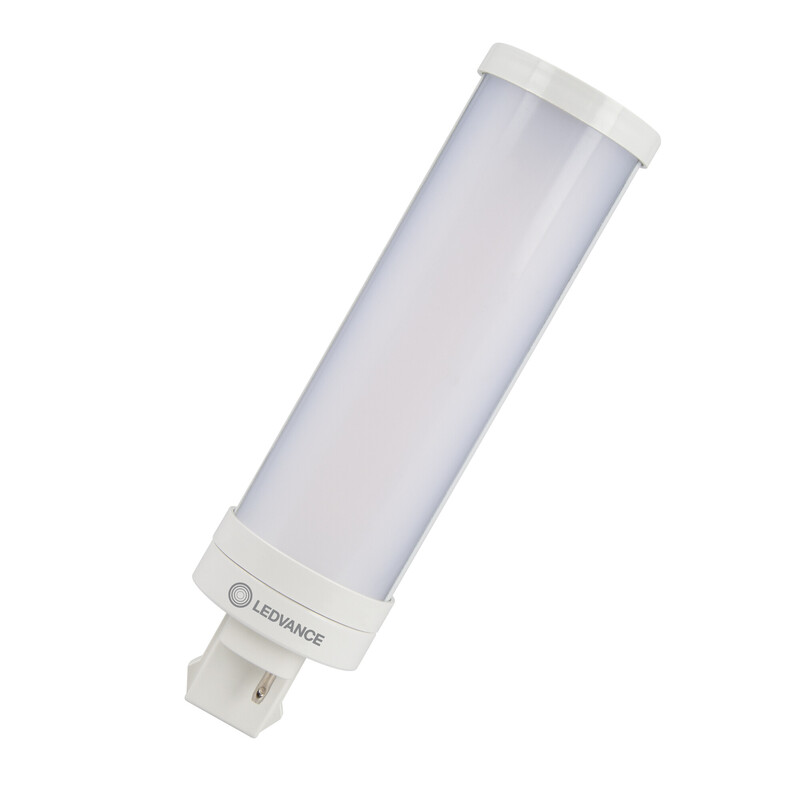

LED LAMP DULUX T26 EM 9W/830 GX24D-3
Product code
4935249
<b>LEDVANCE DULUX LED T</b> product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.<br /><br /><b>Key technical specifications:</b><br /><ul><li>Luminous flux: 1000 lm (equivalent to TC-T 26 W)</li><li>Base: GX24d-3</li><li>Operation: Ballast (CCG) or 230 V (AC)</li><li>Color temperature: Warm, 3000 K</li><li>Power: 9 W</li><li>Luminous efficacy: 111 lm/W</li><li>Energy efficiency class: E</li><li>Beam angle: 120 D</li><li>Dimensions (length/diameter): 147 x 38 mm</li><li>Operating temperature: -20…+45 C</li><li>Service life: 30,000 hours (L70/B50 +25 C)</li><li>Warranty: 3 years</li></ul> This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current43-43 mA
Power factor0.9
Lamp power9-9 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux1000-1000 lm
Rated luminous flux according to IEC 626121000 lm
Lamp efficacy111 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPCZN744
STK4935249
PLC4935249
GTIN/EAN4058075823297
Manufacturer part number4058075823297
Vendor material number4935249
Basic information
Package measurements (L x W x H)41 x 41 x 152 mm
Package volume0.256 l
Package weight0.096 kg
Base uniteach
Package units1 / 10 / 430 / 2580
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
