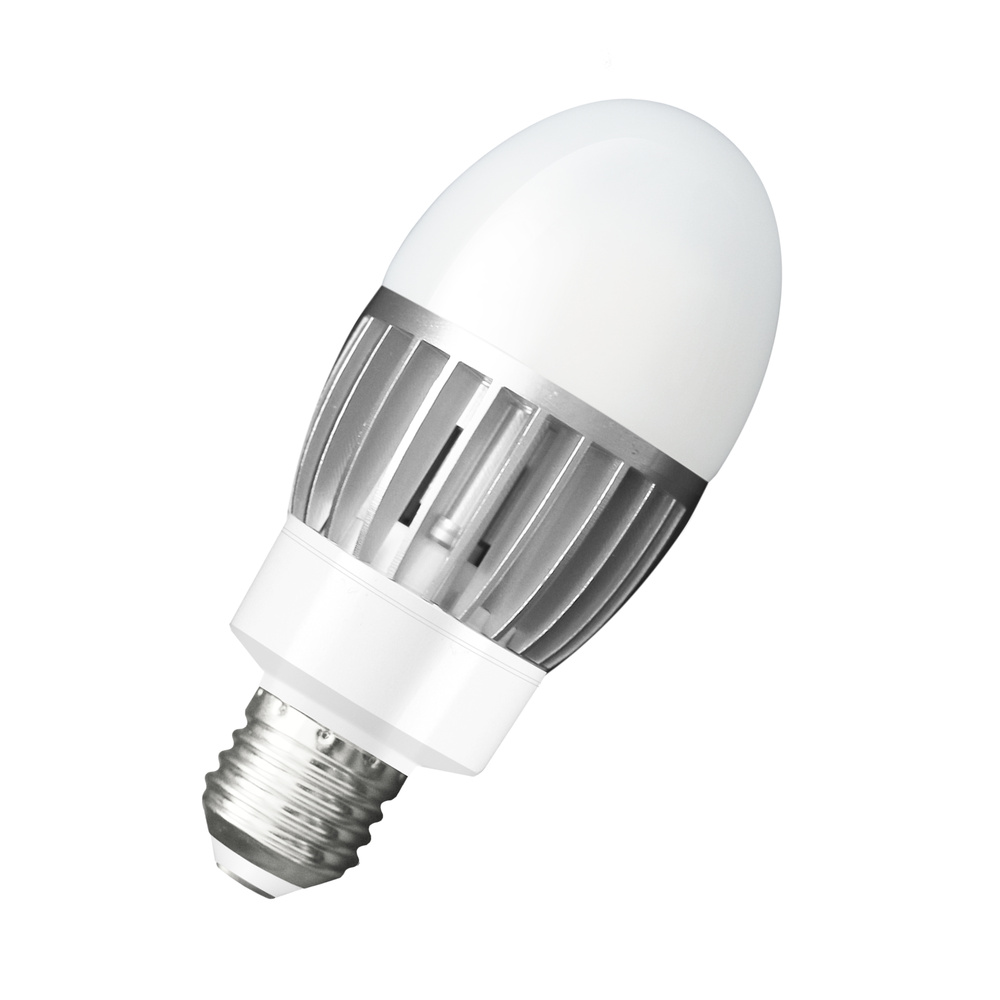

LED-LAMP HQL ALU P 14,5W/827 1800lm E27
Product code
4803003

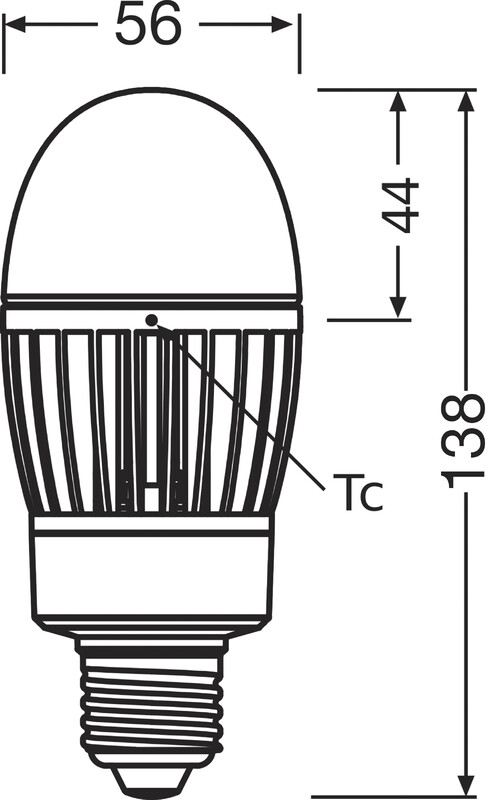

From the LEDVANCE HQL LED PERFORMANCE product family, you will find an extremely long-lasting LED solution to replace halogen lamps. High IP rating and wide operating temperature range enable the lamp to be used in outdoor lighting. Key technical specifications: Luminous flux: 1800 lm (equivalent to 50 W HQL) Base: E27 Operation: Ballast (CCG) or 230 V (AC) Color temperature: 2700 K Power: 14.5 W Luminous efficacy: 124 lm/W Energy efficiency class: E Dimensions (length/diameter): 138 x 56 mm Weight: 210 g Operating ambient temperature: -40…+60 °C Service life: 60,000 hours (L70/B50 +25 °C) Warranty: 8 years Protection class: IP65 CENEC certification
Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the ignition devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can withstand the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current67-67 mA
Power factor0.9
Lamp power14.5-14.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux1800-1800 lm
Rated luminous flux according to IEC 626121800 lm
Lamp efficacy124 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPCZY268
STK4803003
PLC4803003
GTIN/EAN4099854040603
Manufacturer part number4099854040603
Vendor material number4803003
Basic information
Package measurements (L x W x H)85 x 85 x 185 mm
Package volume1.337 l
Package weight0.25 kg
Base uniteach
Package units1 / 6 / 96 / 480
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (9)
Certificates
Brochures & documents
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
