LED-LAMP HQL ALU P 21,5W/827 2700lm E27
Product code
4803005

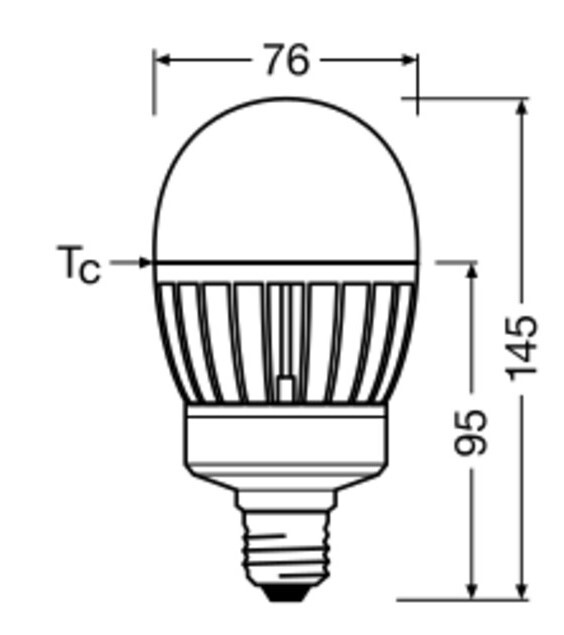

The LEDVANCE HQL LED PERFORMANCE product line offers an extremely long-life LED solution as a replacement for discharge lamps. High IP rating and wide operating temperature range enable the lamp to be used in outdoor lighting. Key technical specifications: Luminous flux: 2700 lm (equivalent to 50 W HQL) Base: E27 Operation: Ballast (CCG) or 230 V (AC) Color temperature: 2700 K Power: 21.5 W Luminous efficacy: 125 lm/W Energy efficiency class: E Dimensions (Length/diameter): 145 x 76 mm Weight: 340 g Operating ambient temperature: -40…+60 °C Service life: 60,000 hours (L70/B50 +25 °C) Warranty: 8 years Enclosure rating: IP65 CENEC certification
Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the starter devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can support the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current100-100 mA
Power factor0.9
Lamp power21.5-21.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux2700-2700 lm
Rated luminous flux according to IEC 626122700 lm
Lamp efficacy125 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPCZY270
STK4803005
PLC4803005
GTIN/EAN4099854040641
Manufacturer part number4099854040641
Vendor material number4803005
Basic information
Package measurements (L x W x H)105 x 105 x 195 mm
Package volume2.15 l
Package weight0.395 kg
Base uniteach
Package units1 / 6 / 66 / 264
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (8)
Certificates
Brochures & documents
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
