LED-LAMP HQL ALU P 29W/840 4000lm E27
Product code
4803008

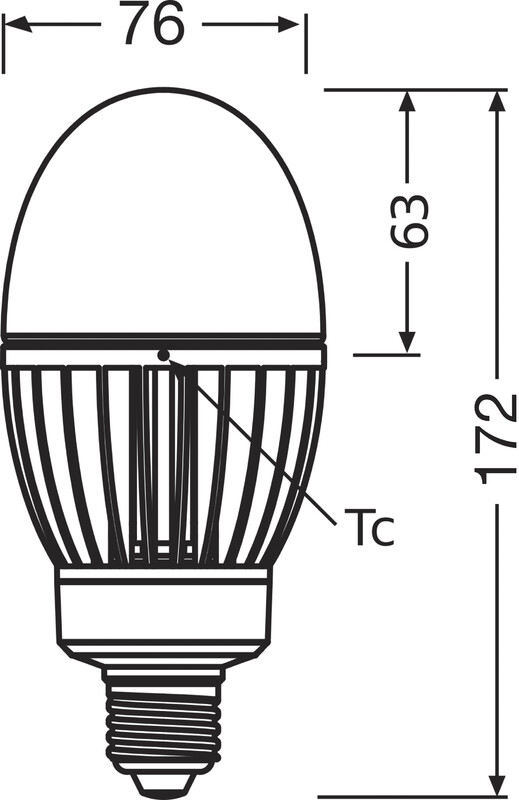

The LEDVANCE HQL LED PERFORMANCE product line offers an extremely long-lasting LED solution as a replacement for discharge lamps. High IP rating and wide operating temperature range enable the lamp to be used in outdoor lighting. Key technical specifications: Luminous flux: 4000 lm (equivalent to 80 W HQL) Base: E27 Operation: Ballast (CCG) or 230 V (AC) Color temperature: 4000 K Power: 29 W Luminous efficacy: 137 lm/W Energy efficiency class: D Dimensions (length/diameter): 172 x 76 mm Weight: 380 g Operating ambient temperature: -40…+60 °C Service life: 60,000 hours (L70/B50 +25 °C) Warranty: 8 years Protection class: IP65 CENEC certification Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium (NAV) lamps, the ignition devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can support the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current135-135 mA
Power factor0.9
Lamp power29-29 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux4000-4000 lm
Rated luminous flux according to IEC 626124000 lm
Lamp efficacy137 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Product codes
SAPCZY273
STK4803008
PLC4803008
GTIN/EAN4099854040702
Manufacturer part number4099854040702
Vendor material number4803008
Basic information
Package measurements (L x W x H)105 x 105 x 225 mm
Package volume2.481 l
Package weight0.44 kg
Base uniteach
Package units1 / 6 / 66 / 264
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (9)
Certificates
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.72
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
