LED-LAMP HQL ALU P 90W/827 11700lm E40

Product code
4803013

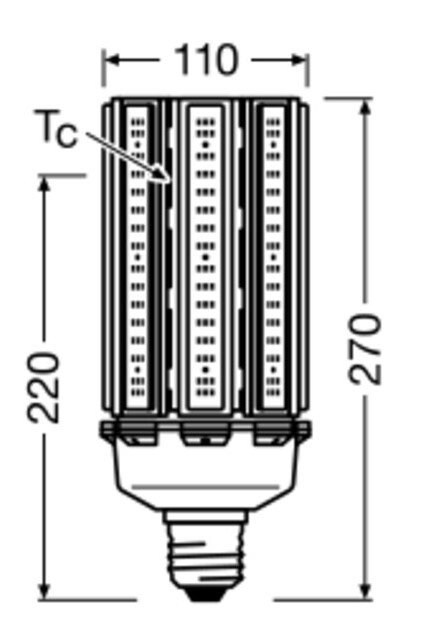

From the LEDVANCE HQL LED PERFORMANCE product family, you will find an extremely long-lasting LED solution as a replacement for discharge lamps. High IP rating and wide operating temperature range enable the lamp to be used in outdoor lighting. Key technical specifications: Luminous flux: 11700 lm (equivalent to 250 W HQL) Base: E40 Operation: Ballast (CCG) or 230 V (AC) Color temperature: 2700 K Power: 90 W Luminous efficacy: 130 lm/W Energy efficiency class: E Dimensions (length/diameter): 270 x 110 mm Weight: 1380 g Operating ambient temperature: -40…+60 °C Service life: 60,000 hours (L70/B50 +25 °C) Warranty: 5 years Protection class: IP65 Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the ignition devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can withstand the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current410-410 mA
Power factor0.9
Lamp power90-90 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux11700-11700 lm
Rated luminous flux according to IEC 6261211700 lm
Lamp efficacy130 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverClear
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPCZY278
STK4803013
PLC4803013
GTIN/EAN4099854040801
Manufacturer part number4099854040801
Vendor material number4803013

Basic information

Package measurements (L x W x H)115 x 115 x 300 mm
Package volume3.968 l
Package weight1.463 kg
Base uniteach
Package units1 / 6 / 54 / 162
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
