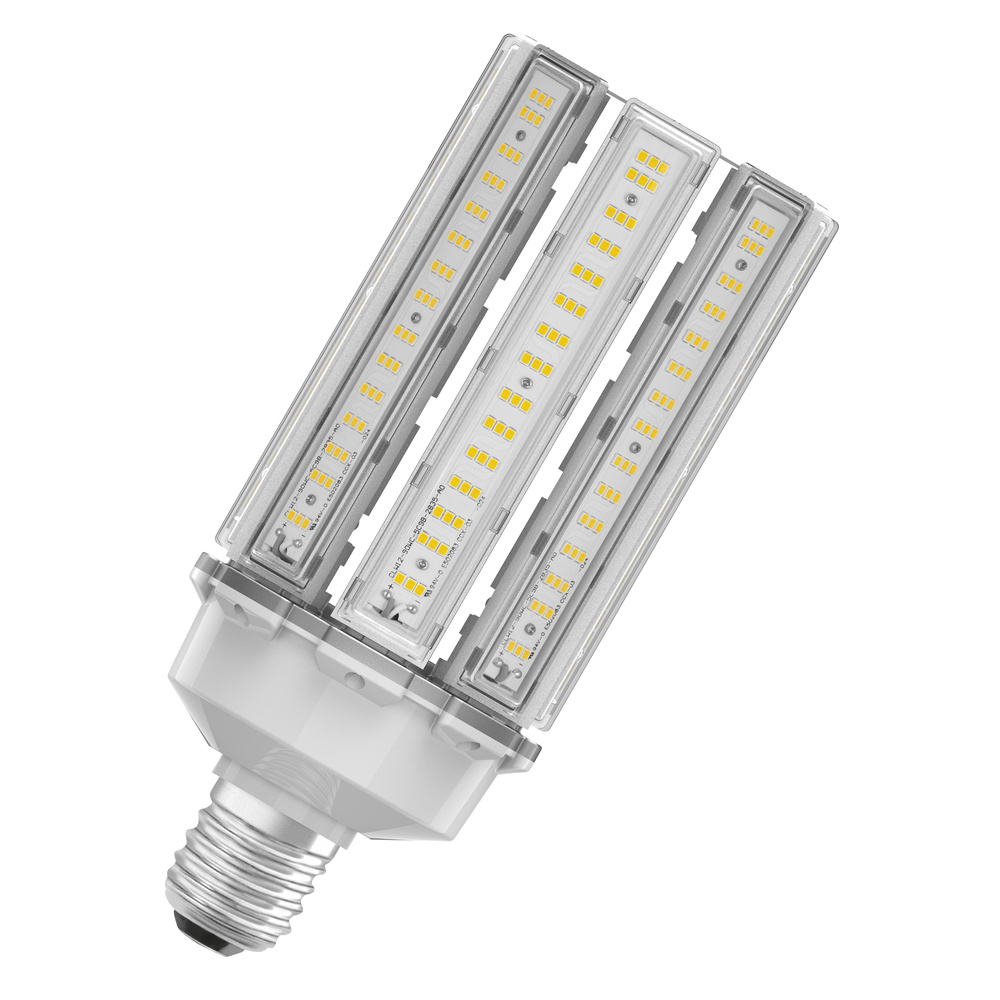

LED-LAMP HQL ALU P 90W/840 13000lm E40
Product code
4803014

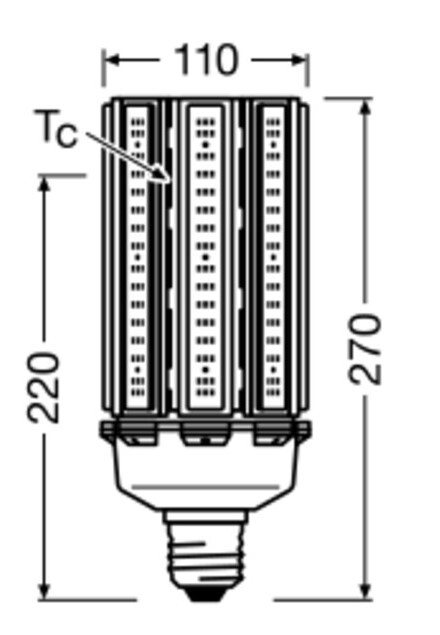

The LEDVANCE HQL LED PERFORMANCE product line offers an extremely long-lasting LED solution as a replacement for discharge lamps. High IP rating and wide operating temperature range enable the lamp to be used in outdoor lighting. Key technical specifications: Luminous flux: 13000 lm (equivalent to 250 W HQL) Base: E40 Operation: Ballast (CCG) or 230 V (AC) Color temperature: 4000 K Power: 90 W Luminous efficacy: 144 lm/W Energy efficiency class: D Dimensions (length/diameter): 270 x 110 mm Weight: 1380 g Operating ambient temperature: -40…+60 °C Service life: 60 000 hours (L70/B50 +25 °C) Warranty: 5 years Protection class: IP65 Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the ignition devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can support the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current410-410 mA
Power factor0.9
Lamp power90-90 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux13000-13000 lm
Rated luminous flux according to IEC 6261213000 lm
Lamp efficacy144 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverClear
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Product codes
SAPCZY279
STK4803014
PLC4803014
GTIN/EAN4099854040825
Manufacturer part number4099854040825
Vendor material number4803014
Basic information
Package measurements (L x W x H)115 x 115 x 300 mm
Package volume3.968 l
Package weight1.5 kg
Base uniteach
Package units1 / 6 / 54 / 162
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (8)
Certificates
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)19.5
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
