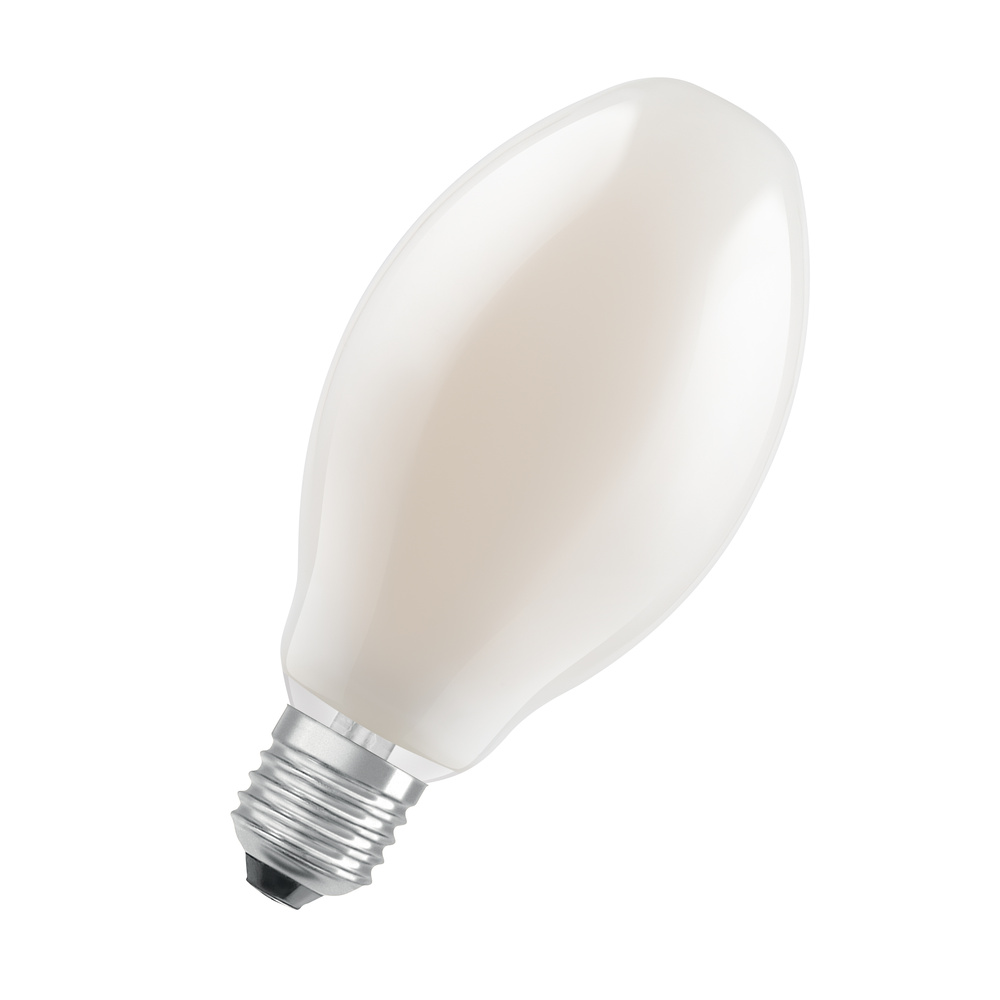

LED-LAMP HQL FIL V 20W/827 2700lm E27

Product code
4803017

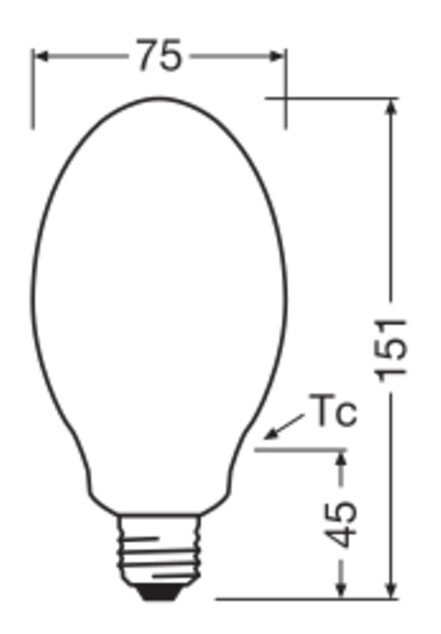

From the LEDVANCE HQL LED FILAMENT VALUE product family, you will find a long-life LED solution to replace halogen lamps. The frosted glass bulb makes the lamp fully omnidirectional, making it ideally suited for various outdoor luminaires by utilizing the reflectors within the luminaire and thus maintaining the luminaire's light distribution almost identical. Key technical specifications: Luminous flux: 2700 lm (equivalent to 50 W HQL) Base: E27 Operation: Ballast (CCG) or 230 V (AC) Color temperature: 2700 K Power: 20 W Luminous efficacy: 135 lm/W Energy efficiency class: D Dimensions (Length/diameter): 151 x 75 mm Weight: 83 g Operating temperature: -20…+50 °C Service life: 25,000 hours (L70/B50 +25 °C) Warranty: 3 years Protection class: IP65 Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the ignition devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can withstand the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current89-89 mA
Power factor0.9
Lamp power20-20 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux2700-2700 lm
Rated luminous flux according to IEC 626122700 lm
Lamp efficacy135 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPCZY282
STK4803017
PLC4803017
GTIN/EAN4099854071775
Manufacturer part number4099854071775
Vendor material number4803017

Basic information

Package measurements (L x W x H)97 x 97 x 182 mm
Package volume1.712 l
Package weight0.14 kg
Base uniteach
Package units1 / 6 / 66 / 264
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)1.9073
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
