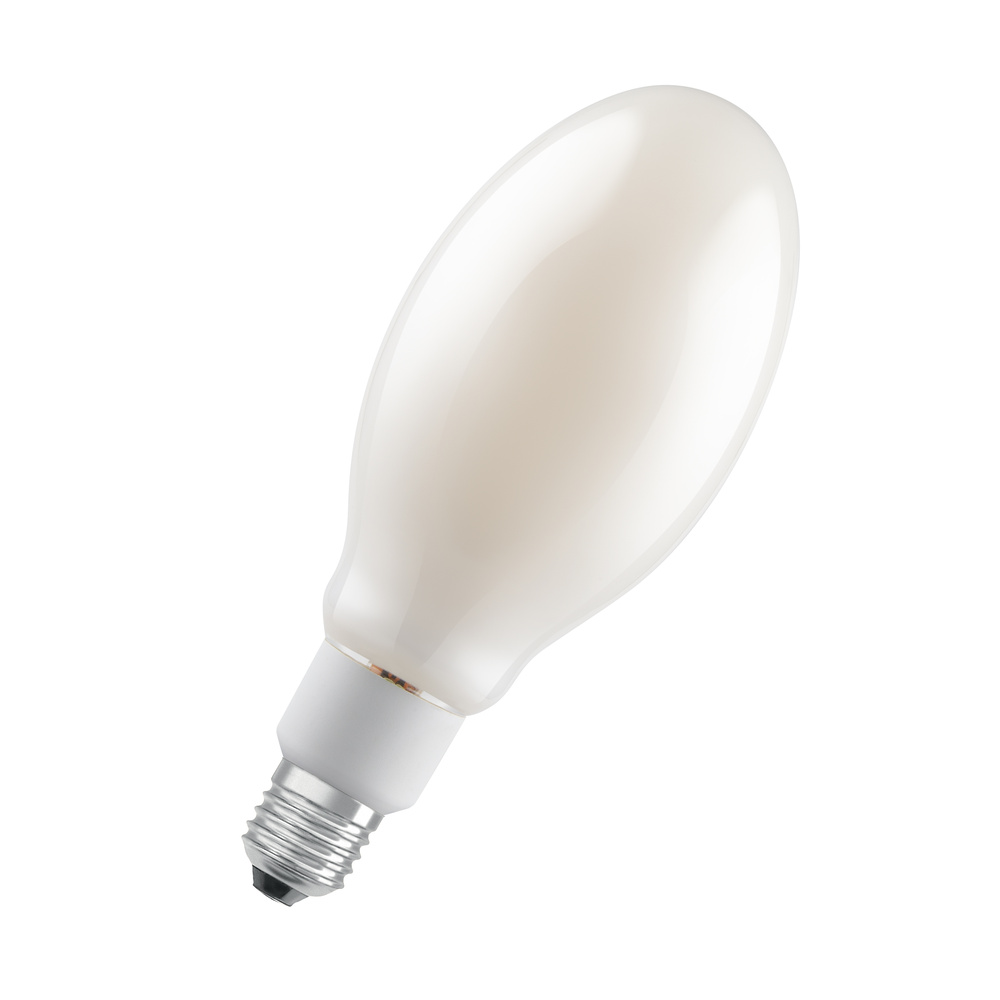

LED-LAMP HQL FIL V 24W/827 3600lm E27

Product code
4803019

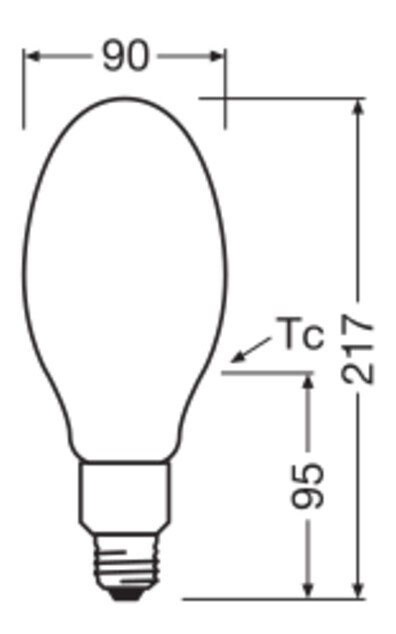

From the LEDVANCE HQL LED FILAMENT VALUE product family, you will find a long-life LED solution to replace halogen lamps. The frosted glass bulb makes the lamp fully omnidirectional, making it ideally suited for various outdoor luminaires by utilizing the reflectors within the luminaire and thus maintaining the luminaire's light distribution almost identical. Key technical specifications: Luminous flux: 3600 lm (equivalent to 80 W HQL) Base: E27 Operation: Ballast (CCG) or 230 V (AC) Color temperature: 2700 K Power: 24 W Luminous efficacy: 150 lm/W Energy efficiency class: D Dimensions (Length/diameter): 217 x 90 mm Weight: 210 g Operating temperature: -20…+50 °C Lifespan: 25,000 hours (L70/B50 +25 °C) Warranty: 3 years Protection class: IP65 Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the ignition devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can support the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current105-105 mA
Power factor0.9
Lamp power24-24 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux3600-3600 lm
Rated luminous flux according to IEC 626123600 lm
Lamp efficacy150 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPCZY284
STK4803019
PLC4803019
GTIN/EAN4099854071812
Manufacturer part number4099854071812
Vendor material number4803019

Basic information

Package measurements (L x W x H)250 x 110 x 105 mm
Package volume2.888 l
Package weight0.3 kg
Base uniteach
Package units1 / 6 / 54 / 162
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)4.087
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
