LED-LAMP HQL FIL V 24W/840 4000lm E27
Product code
4803020
From the LEDVANCE HQL LED FILAMENT VALUE product family, you will find a long-life LED solution to replace halogen lamps. The frosted glass bulb makes the lamp fully omnidirectional, making it ideally suited for various outdoor luminaires by utilizing the reflectors within the luminaire and thus maintaining the luminaire's light distribution almost identical. Key technical specifications: Luminous flux: 4000 lm (equivalent to 80 W HQL)
Base: E27
Operation: Ballast (CCG) or 230 V (AC)
Color temperature: 4000 K
Power: 24 W
Luminous efficacy: 166 lm/W
Energy efficiency class: C

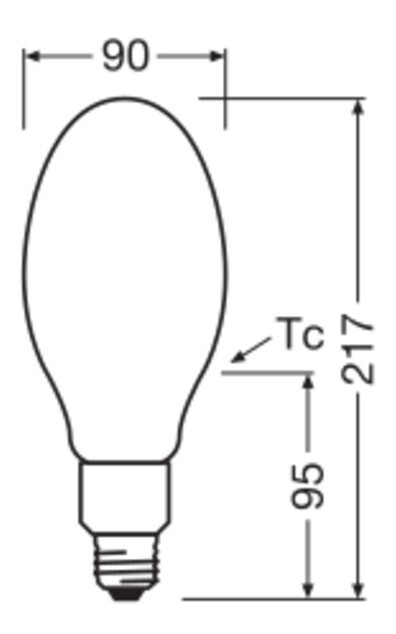

Dimensions (Length/diameter): 217 x 90 mm
Weight: 210 g
Operating temperature: -20…+50 °C
Lifespan: 25,000 hours (L70/B50 +25 °C)
Warranty: 3 years
Protection class: IP65
Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the ignition devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can support the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current105-105 mA
Power factor0.9
Lamp power24-24 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux4000-4000 lm
Rated luminous flux according to IEC 626124000 lm
Lamp efficacy166 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Product codes
SAPCZY285
STK4803020
PLC4803020
GTIN/EAN4099854071836
Manufacturer part number4099854071836
Vendor material number4803020
Basic information
Package measurements (L x W x H)112 x 112 x 248 mm
Package volume3.111 l
Package weight0.22 kg
Base uniteach
Package units1 / 6 / 54 / 162
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (9)
Certificates
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.9971
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
