LED-LAMP HQL FIL V 38W/827 5400lm E40

Product code
4803023

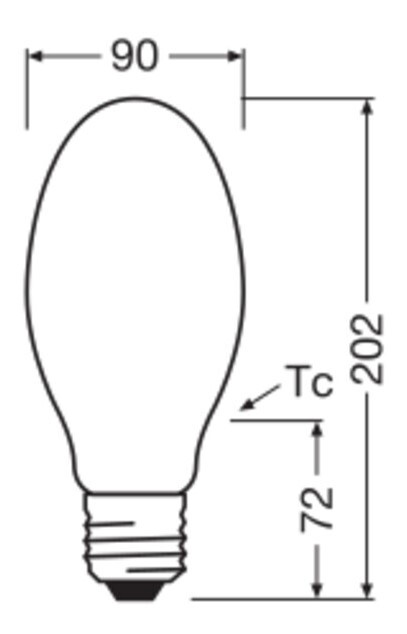

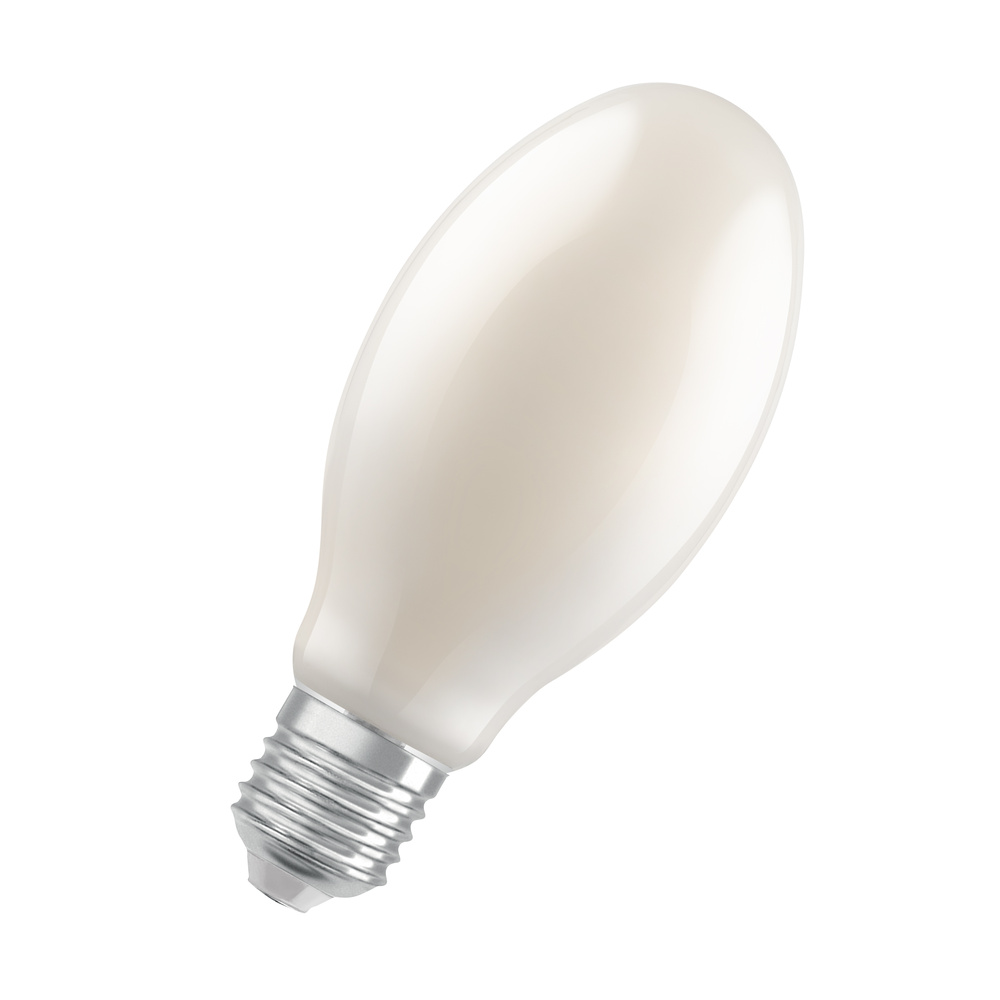

From the LEDVANCE HQL LED FILAMENT VALUE product family, you will find a long-life LED solution to replace halogen lamps. The frosted glass bulb makes the lamp fully omnidirectional, making it ideally suited for various outdoor luminaires by utilizing the reflectors within the luminaire and thus maintaining the luminaire's light distribution almost identical. Key technical specifications: Luminous flux: 5400 lm (equivalent to 125 W HQL) Base: E40 Operation: Ballast (CCG) or 230 V (AC) Color temperature: 2700 K Power: 38 W Luminous efficacy: 142 lm/W Energy efficiency class: D Dimensions (Length/diameter): 202 x 90 mm Weight: 210 g Operating temperature: -20…+50 °C Service life: 25,000 hours (L70/B50 +25 °C) Warranty: 3 years Protection class: IP65 Can be installed directly in place of an HQL lamp. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the ignition devices in the luminaire must be bypassed. We also recommend ensuring that the luminaire can withstand the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current160-160 mA
Power factor0.9
Lamp power38-38 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux5400-5400 lm
Rated luminous flux according to IEC 626125400 lm
Lamp efficacy142 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPCZY288
STK4803023
PLC4803023
GTIN/EAN4099854071898
Manufacturer part number4099854071898
Vendor material number4803023

Basic information

Package measurements (L x W x H)112 x 112 x 233 mm
Package volume2.923 l
Package weight0.291 kg
Base uniteach
Package units1 / 6 / 54 / 162
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)3.9644
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
