LED-LAMP NAV FIL V 41W/727 7000lm E40
Product code
4803031

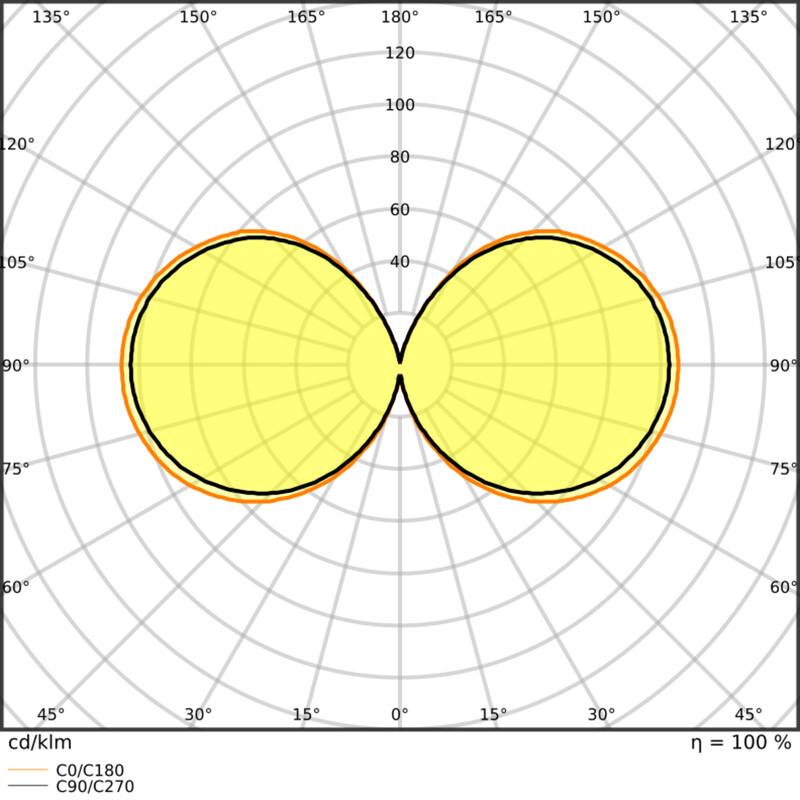

From the LEDVANCE NAV LED FILAMENT VALUE product family, you will find a long-life LED solution to replace discharge lamps. Thanks to its full 360-degree light distribution, it is ideally suited for various outdoor luminaires, utilizing the reflectors within the luminaire and thus maintaining the luminaire's light distribution almost identical. Key technical specifications: Luminous flux: 7000 lm (equivalent to NAV 100 W)
Base: E40
Operation: Ballast (CCG) or 230 V (AC)
Color temperature: 2700 K
Power: 41 W
Luminous efficacy: 170 lm/W
Energy efficiency class: C

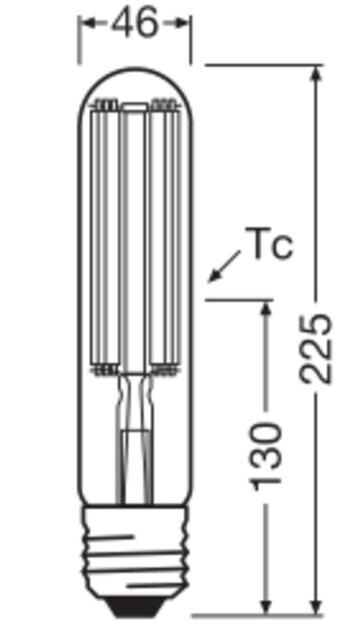

Dimensions (Length/diameter): 225 x 46 mm
Weight: 170 g
Operating temperature: -20…+50 °C
Service life: 25,000 hours (L70/B50 +25 °C)
Warranty: 3 years
Protection class: IP65
When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), the ignition devices in the luminaires must be bypassed. We also recommend ensuring that the luminaire can withstand the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current175-175 mA
Power factor0.9
Lamp power41-41 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux7000-7000 lm
Rated luminous flux according to IEC 626127000 lm
Lamp efficacy170 lm/W
Colour rendering index CRI70-79
Lamp shapeOther
Filament lampyes
Type of glass/coverClear
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPCZY296
STK4803031
PLC4803031
GTIN/EAN4099854072055
Manufacturer part number4099854072055
Vendor material number4803031
Basic information
Package measurements (L x W x H)52 x 52 x 311 mm
Package volume0.841 l
Package weight0.241 kg
Base uniteach
Package units1 / 6 / 84 / 588
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (8)
Certificates
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.9449
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
