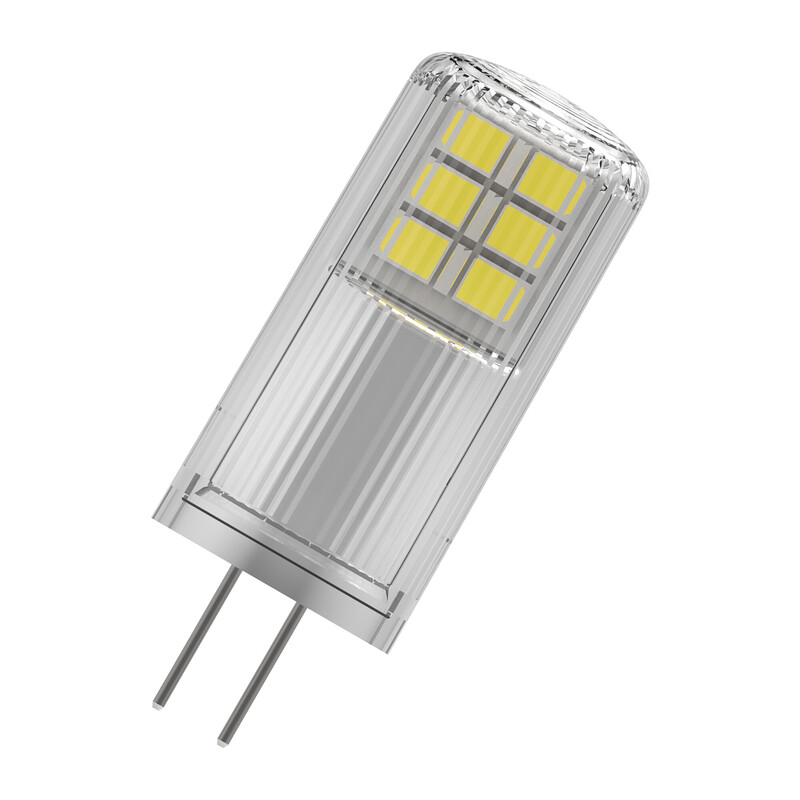

LED-LAMP PARATHOM SPECIAL PIN 2W/827 200LM G4 DIM CL

Product code
4737984
From the LED PIN PERFORMANCE DIMMABLE product family, you can find a long-lasting and energy-efficient LED miniature lamp as a replacement for the most common pin halogen lamps. LED miniature lamps may be larger than the old halogen lamps, so make sure the LED miniature lamp fits in the fixture. Key technical specifications
  • Luminous flux: 200 lm (equivalent to 20 W)
  • Base: Pin
  • Base material: clear plastic
  • Color temperature: 2700 K
  • Color rendering index: over 80
  • Dimmable: Yes
  • Base type: G4 / 12 V
  • Power: 2 W
  • Luminous efficacy: 100 lm/W
  • Energy efficiency class: F
  • Dimensions (length/diameter): 38 x 14 mm
  • Operating temperature: -20…+40 C
  • Service life: 25,000 hours (L70/B50 +25 C)
  • Warranty: 5 years

Find the list of compatible phase-cut dimmers at: ledvance.fi/dim and the list of compatible transformers at: ledvance.fi/ecg.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220 - 240 V
Nominal current170 - 170 mA
Power factor0.9
Lamp power2 - 2 W
Voltage typeAC/DC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux200 - 200 lm
Rated luminous flux according to IEC 62612200 lm
Lamp efficacy100 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverClear
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPDEZ397
STK4737984
PLC4737984
GTIN/EAN4099854248542
Manufacturer part number4099854248542
Vendor material number4737984

Basic information

Package measurements (L x W x H)65 x 30 x 30 mm
Package volume0.06 l
Package weight0.01 kg
Base uniteach
Package units1 / 20 / 980 / 12740
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Sustainability categories

Features

Fully recyclable packagingYes
Warranty (years)5
Incandescent, halogen or fluorescent lightingNo
Energy efficiency classF
Packaging made of recycled materialsYes

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
