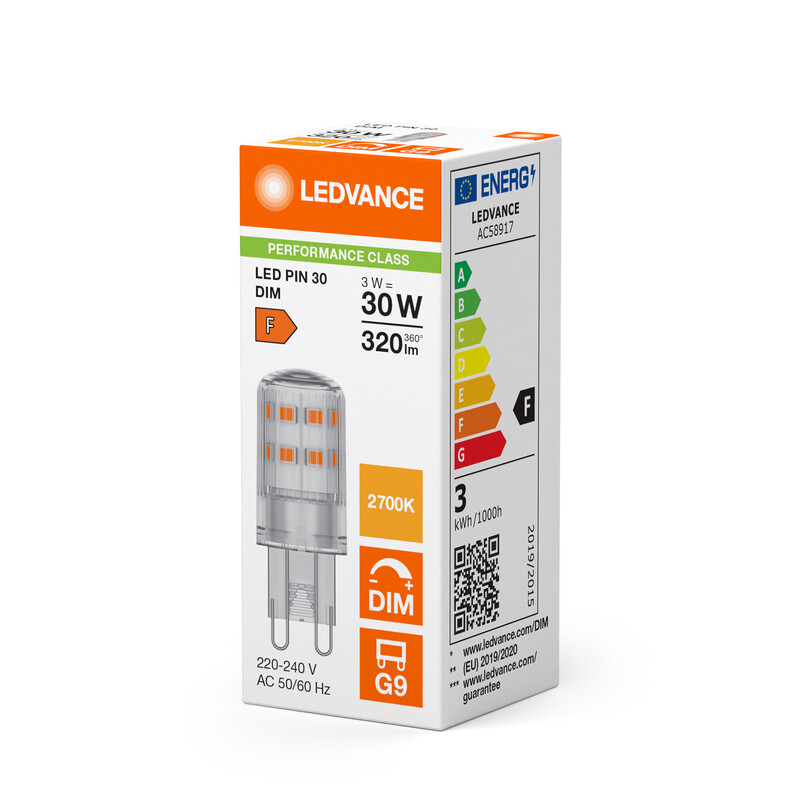

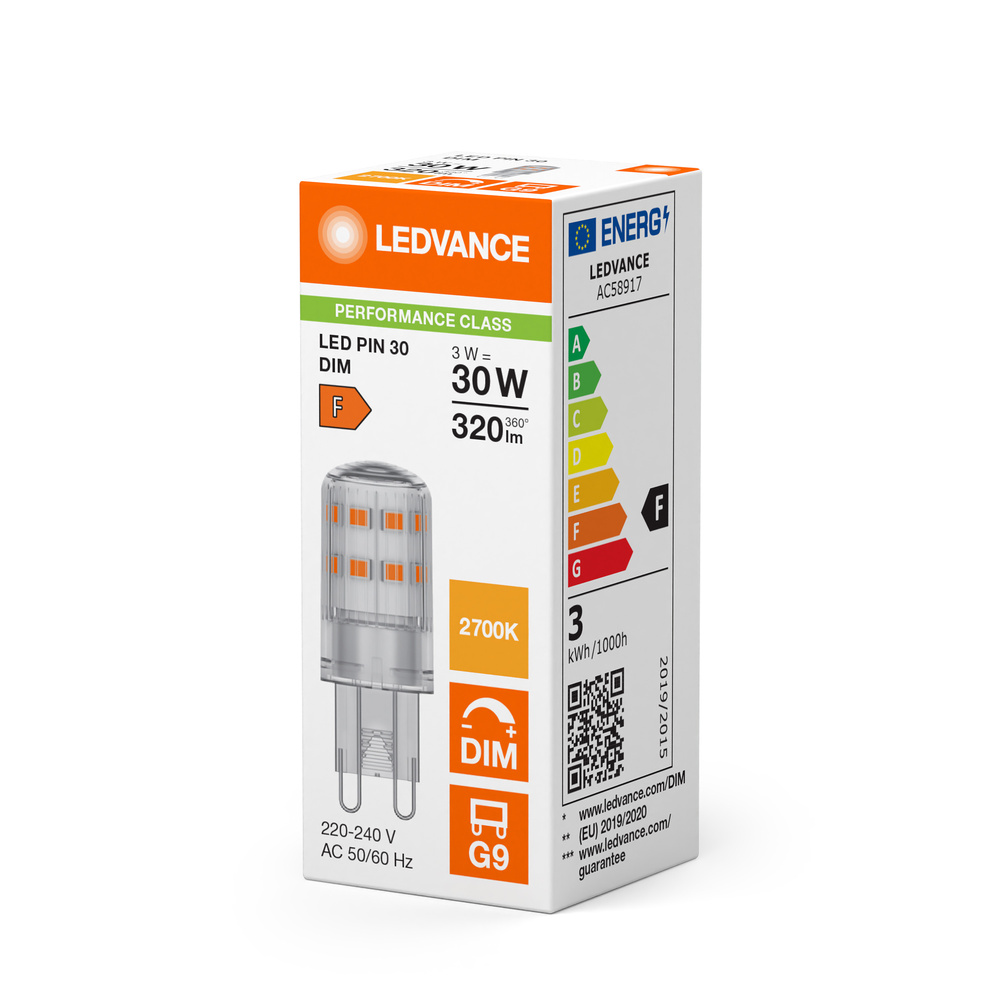

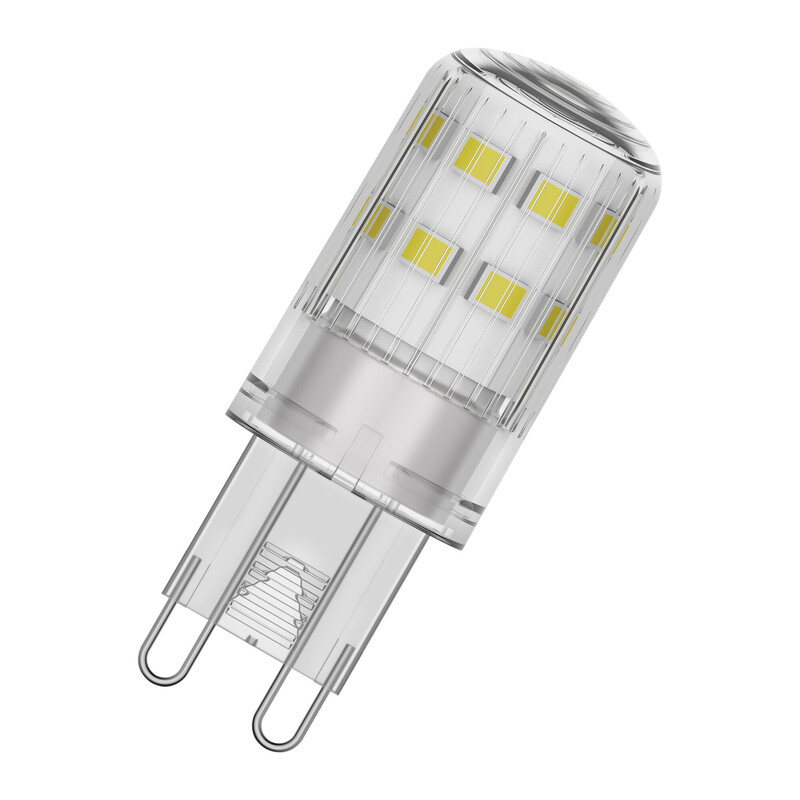

LED-LAMP PARATHOM SPECIAL PIN 3W/827 320LM G9 DIM CL
Product code
4737981
From the LED PIN PERFORMANCE DIMMABLE product family, you can find a long-lasting and energy-efficient LED miniature lamp as a replacement for the most common pin halogen lamps. LED miniature lamps may be larger than the old halogen lamps, so make sure the LED miniature lamp fits in the fixture.
Key technical specifications- Luminous flux: 320 lm (equivalent to 30 W)
- Base type: Pin
- Base material: clear plastic
- Color temperature: 2700 K
- Color rendering index: over 80
- Dimmable: Yes
- Base: G9 / 220…240 V
- Power: 3 W
- Luminous efficacy: 106 lm/W
- Energy efficiency class: F
- Dimensions (Length/diameter): 49 x 18 mm
- Operating temperature: -20…+40 C
- Service life: 25,000 hours (L70/B50 +25 C)
- Warranty: 5 years
A list of compatible phase-cut dimmers can be found at: ledvance.fi/dim.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220 - 240 V
Nominal current18 - 18 mA
Power factor0.4
Lamp power3 - 3 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux320 - 320 lm
Rated luminous flux according to IEC 62612320 lm
Lamp efficacy106 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverClear
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPDEZ394
STK4737981
PLC4737981
GTIN/EAN4099854248788
Manufacturer part number4099854248788
Vendor material number4737981
Basic information
Package measurements (L x W x H)70 x 30 x 30 mm
Package volume0.063 l
Package weight0.01 kg
Base uniteach
Package units1 / 20 / 980 / 12740
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Environment and safety
Sustainability categories
Circular economy
Features
Fully recyclable packagingYes
Warranty (years)5
Incandescent, halogen or fluorescent lightingNo
Energy efficiency classF
Packaging made of recycled materialsYes
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
