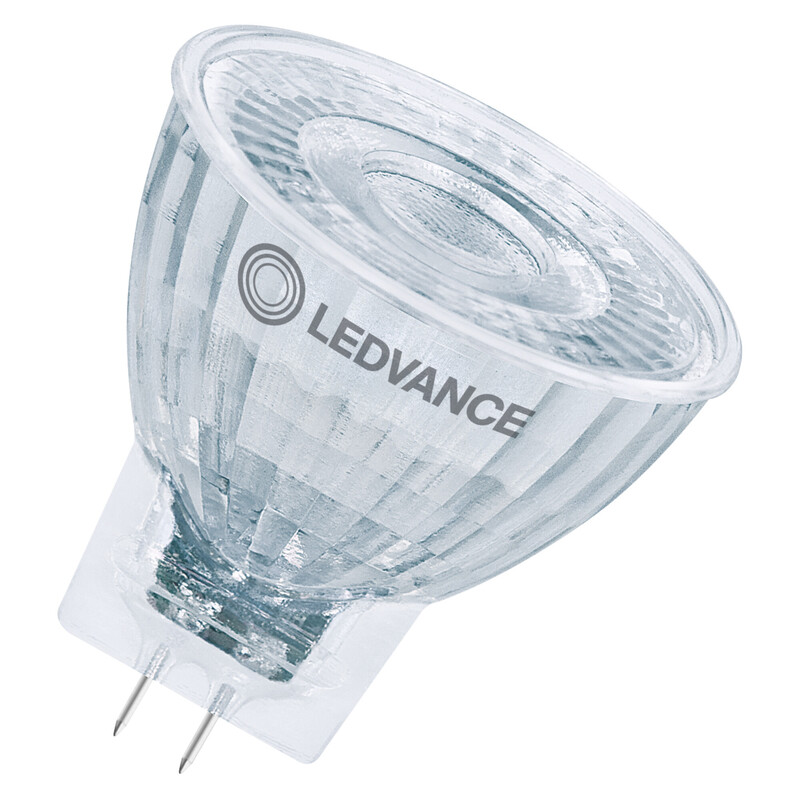

LED-LAMP PERFORMANCE SPOT MR11 4,2W/840 345LM GU4 36D
Product code
4737296
LEDVANCE LED SPOT MR11 PERFORMANCE - from this product family you can find a long-lasting and high-quality LED spotlight as a replacement for GU4-based MR11 spotlights. The lamps are made of glass and their physical dimensions match traditional lamps.
Key technical specifications:
Key technical specifications:
- Luminous flux: 345 lm (equivalent to HAL 35 W)
- Luminous intensity: 700 cd
- Beam angle: 36 D
- Color temperature: 4000 K
- Color rendering index: over 80
- Dimmable: No
- Base: GU4 / 12 V
- Power: 4.2 W
- Energy efficiency class: F
- Dimensions (length/diameter): 38 x 35 mm
- Operating temperature: -20…+40 °C
- Service life: 15,000 hours (L70/B50 +25 °C)
- Warranty: 3 years
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage12 - 12 V
Nominal current500 - 500 mA
Power factor0.5
Lamp power4.2 - 4.2 W
Voltage typeAC/DC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux345 - 345 lm
Rated luminous flux according to IEC 62612345 lm
Lamp efficacy82 lm/W
Luminous intensity700 cd
Colour rendering index CRI80-89
Lamp shapeReflector
Filament lampno
Type of glass/coverClear
Product codes
SAPCZY608
STK4737296
PLC4737296
GTIN/EAN4099854050350
Manufacturer part number4099854050350
Vendor material number4737296
Basic information
Package measurements (L x W x H)36 x 36 x 60 mm
Package volume0.078 l
Package weight0.023 kg
Base uniteach
Package units1 / 10 / 600 / 9000
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
