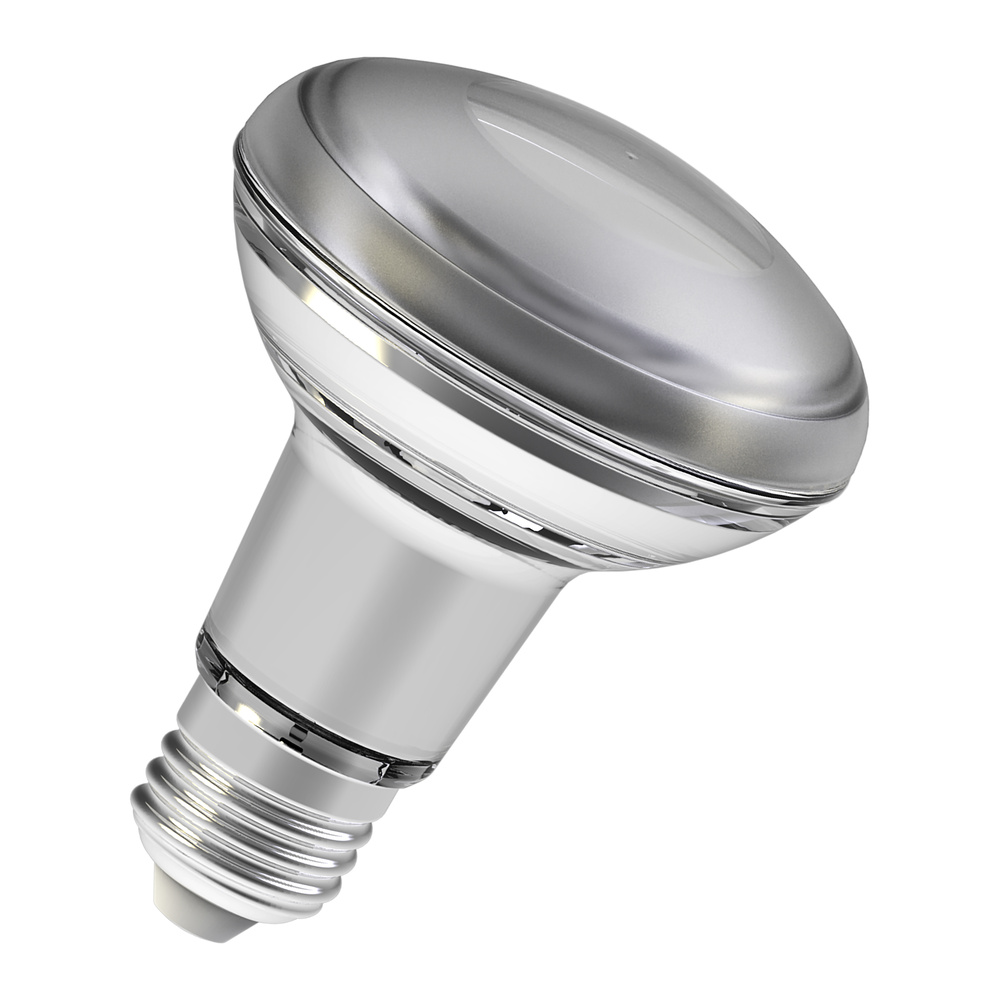

LED-LAMP PERFORMANCE SPOT R80 9W/827 670LM E27 DIM 36D
Product code
4737514
LEDVANCE LED SPOT CONCENTRA PERFORMANCE DIMMABLE - from this product family you can find a long-life and dimmable LED spotlight to replace the Concentra spotlight. The lamps are made of glass and their physical dimensions match traditional lamps.
Key technical specifications:
Key technical specifications:
- Luminous flux: 670 lm (equivalent to 100 W)
- Luminous intensity: 1000 cd
- Beam angle: 36 D
- Color temperature: 2700 K
- Color rendering index: over 80
- Dimmable: Yes
- Base: E27 / 220…240 V
- Power: 8.5 W
- Energy efficiency class: F
- Dimensions (Length/diameter): 105 x 80 mm
- Operating temperature: -20…+40 C
- Lifespan: 25,000 hours (L70/B50 +25 C)
- Warranty: 4 years
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-220 V
Nominal current48-48 mA
Power factor0.5
Lamp power8.5-8.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux670-670 lm
Rated luminous flux according to IEC 62612670 lm
Lamp efficacy78 lm/W
Luminous intensity1000 cd
Colour rendering index CRI80-89
Lamp shapeReflector
Filament lampno
Type of glass/coverClear
Product codes
SAPCZY626
STK4737514
PLC4737514
GTIN/EAN4099854051258
Manufacturer part number4099854051258
Vendor material number4737514
Basic information
Package measurements (L x W x H)82 x 82 x 118 mm
Package volume0.793 l
Package weight0.13 kg
Base uniteach
Package units1 / 10 / 90 / 630
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Features
Fully recyclable packagingYes
Warranty (years)5
Incandescent, halogen or fluorescent lightingNo
Energy efficiency classF
Packaging made of recycled materialsYes
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
