LED LIGHT TUBE T5 T5 FC55 EXT 21,5W/830 2GX13

Product code
4935313

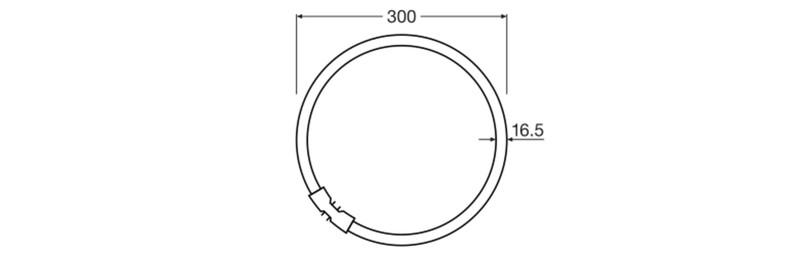

The LEDVANCE LED T5 FC EXTERNAL product family enables lighting suitable for DALI lighting control with interchangeable light sources. A separate DALI-dimmable power supply also allows the use of LED tubes in central acoustic emergency lighting systems. Key technical specifications: Luminous flux: 2900 lm (equivalent to T5 FC 40/55 W) Base: 2GX13 Usage: Only with LEDVANCE DR DALI-P-30/220-240/700 power supply Lamp voltage: 33 V Lamp current: FC 40W: 500 mA; FC 55W: 650 mA Color temperature: 3000 K Color rendering index: over 80 Power: 21.5 W Luminous efficacy: 134 lm/W Energy efficiency class: E Beam angle: 120 D Dimensions (length/diameter): 300 x 16.5 mm Operating temperature: -20…+45 C Service life: 50,000 hours (L70/B50 +25 C) Warranty: 5 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal current650 - 650 mA
Power factor0.9
Lamp power21.5 - 21.5 W
Voltage typeDC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux2900 - 2900 lm
Rated luminous flux according to IEC 626122900 lm
Lamp efficacy134 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
ColourWhite

Product codes

SAPDHV654
STK4935313
PLC4935313
GTIN/EAN4099854300868
Manufacturer part number4099854300868
Vendor material number4935313

Basic information

Package measurements (L x W x H)26 x 307 x 308 mm
Package volume2.458 l
Package weight0.229 kg
Base uniteach
Package units1 / 10 / 70 / 210
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
