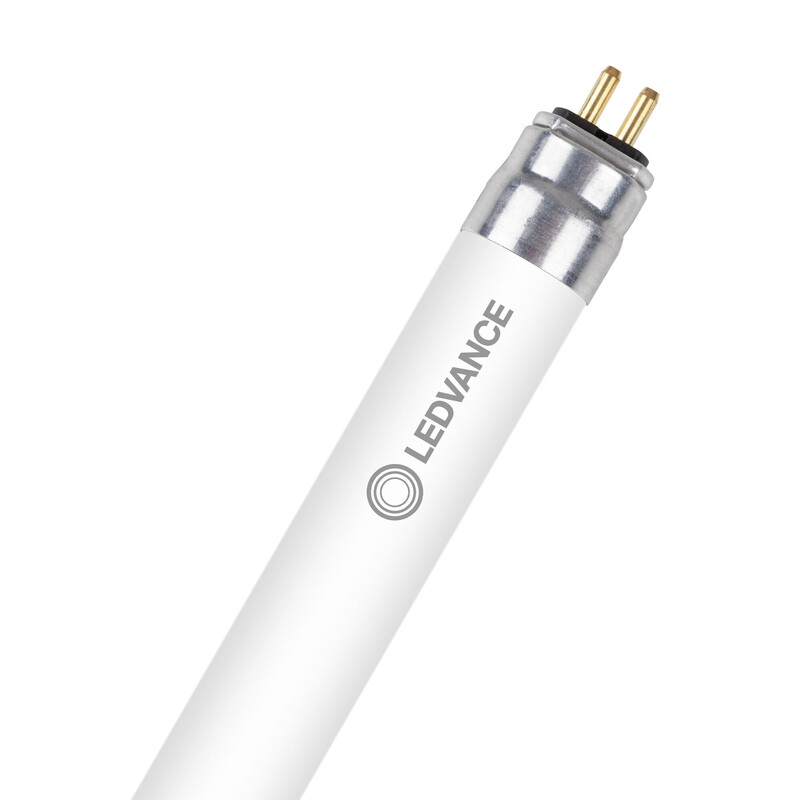

LED LIGHT TUBE T5 T5 HE28 EXT 1200 16W/840

Product code
4935302
LEDVANCE LED TUBE T5 EXTERNAL product family enables lighting suitable for DALI lighting control with interchangeable light sources. A separate DALI dimmable power supply also allows the use of LED tubes in central acoustic emergency lighting systems. Key technical data: Luminous flux: 2400 lm (equivalent to T5 28 W) Base: G5 Usage: Only with LEDVANCE DALI EXTERNAL interface device Nominal voltage and current (DC): 41 V, 400 mA Color temperature: 4000 K Color rendering index: over 80 Power: 16 W Luminous efficacy: 150 lm/W Energy efficiency class: D Beam angle: 180° Dimensions (length/diameter): 1163 x 17 mm Operating temperature: -20…+50°C Service life: 75,000 hours (L70/B50 +25°C) Warranty: 5 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal current400 - 400 mA
Power factor0.9
Lamp power16 - 16 W
Voltage typeDC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux2400 - 2400 lm
Rated luminous flux according to IEC 626122400 lm
Lamp efficacy150 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, double-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K
SocketG5

Product codes

SAPDHV643
STK4935302
PLC4935302
GTIN/EAN4099854294327
Manufacturer part number4099854294327
Vendor material number4935302

Basic information

Package measurements (L x W x H)1165 x 22 x 22 mm
Package volume0.564 l
Package weight0.211 kg
Base uniteach
Package units1 / 25 / 100 / 500
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
